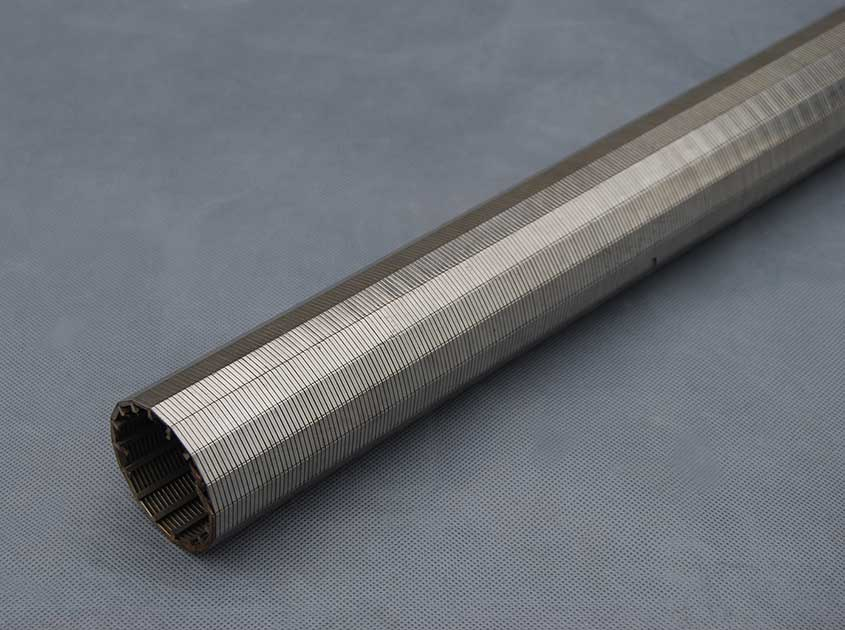

JLHY wedge wire filters feature V-shaped wire profiles that provide precise slot openings and excellent structural strength for industrial filtration and screening.
Non-clogging slot design
High load-bearing capacity
Excellent wear resistance
Accurate filtration
Long service life
Water treatment
Oil & gas filtration
Mining and screening
Industrial process filtration
Pickled and passivated
Polished
Heat treated (if required)
Material: SS304, SS316L
Slot size: 0.05–3 mm
Diameter: 25–500 mm
Open area: up to 60%
Operating temperature: up to 450°C
| Material | stainless steel 304, 304L, 316, 316L, hastelloy steel, nickle alloy steel or other alloy steel |
| Wedge wire | width:1.50mm, 1.80mm, 2.30mm, 3.00mm, 3.70mm, 3.30mm. |
| Height: 2.20mm, 2.50mm, 2.70mm, 3.60mm, 4.30mm 4.70mm, 5.60mm, 6.30mm, 7.00mm | |
| Support rod | Width: 2.30mm, 3.00mm, 3.30mm, 3.70mm |
| Height: 2.70mm, 3.60mm, 4.70mm, 5.60mm, 6.30mm | |
| Round wire diameter | 2.50 - 5.0mm |
| Support profile | flat, triangle wire, round wire, trapezoid wire. |
| Slot opening | 0.05–35 mm |
| Tube diameter | 10–1500 mm |
| Tube length | 0.3, 0.6, 1, 2, 3, 6m, other lengths available as request |
| Tube Type | Radial internal wedge wire tube,Radial external wedge wire tube,Axial external wedge wire tube |
| Filter type | from outside to inside or inside to outside |
| Edge type | standard type, end ring type, flange type, threaded type |
Slot size customization
Length and diameter customization

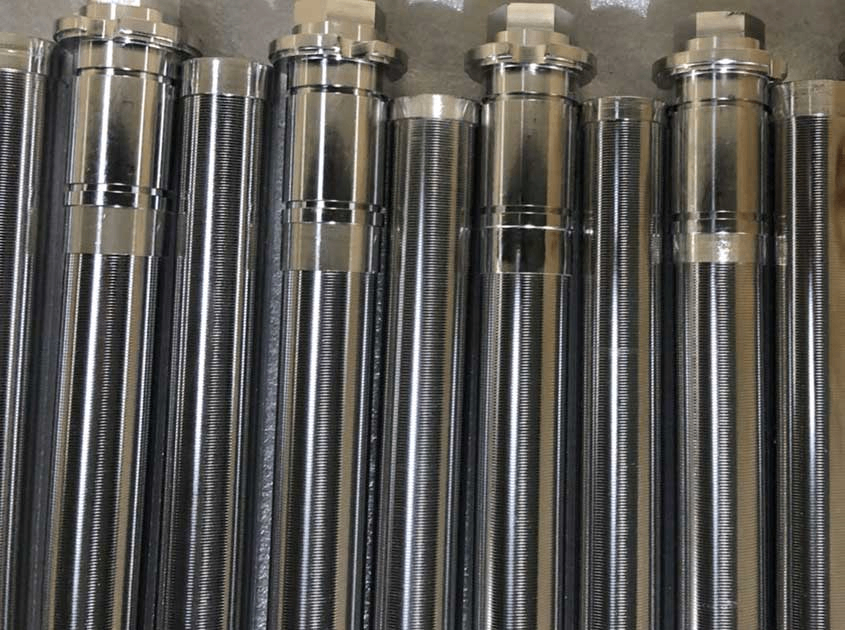

End fittings
Special alloys
