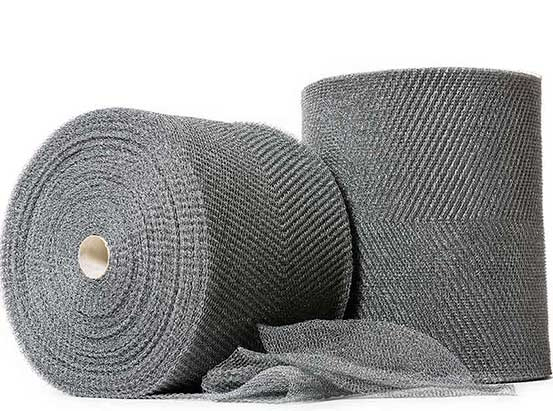

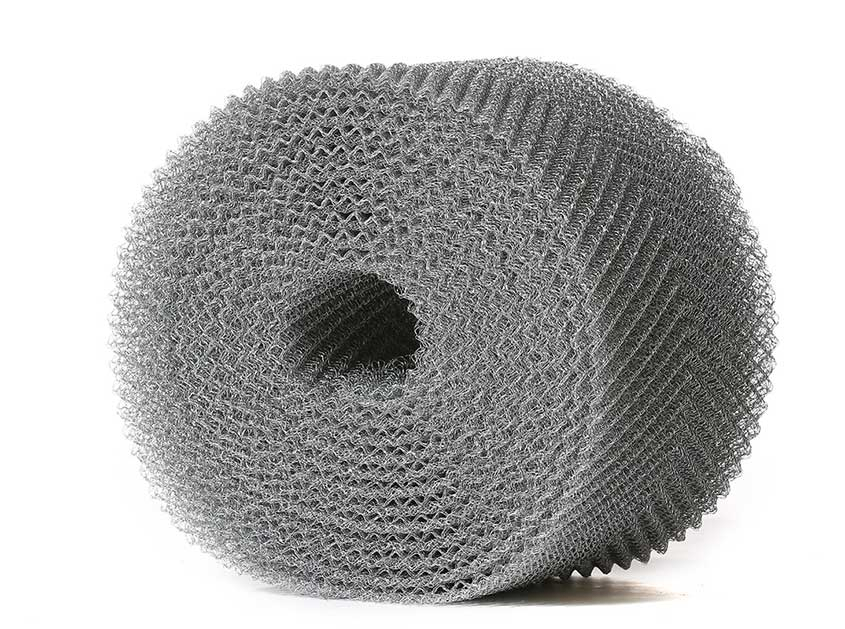

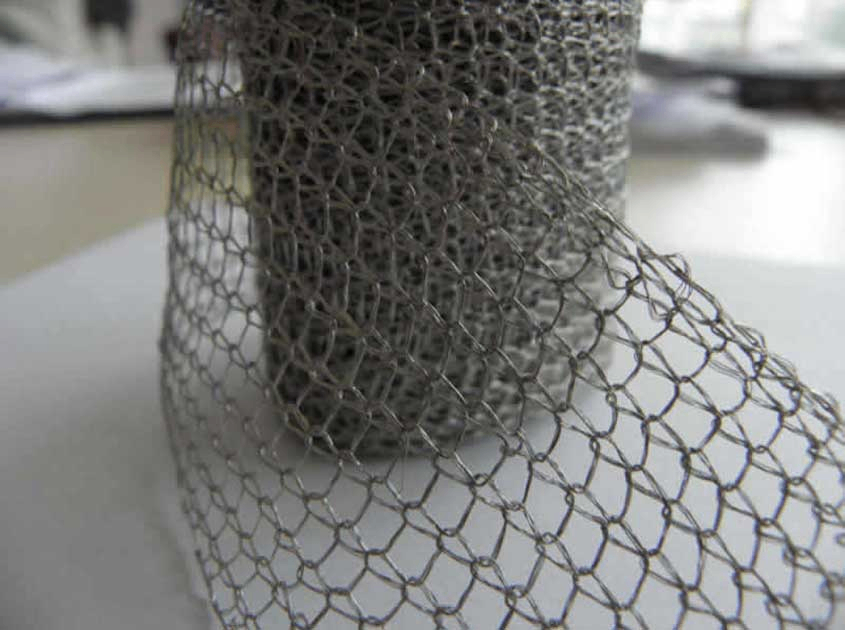

JLHY knitted wire mesh is produced by interlocking metal wires into a flexible, porous structure, ideal for filtration, sealing, and vibration control applications.
High porosity and flexibility
Excellent shock absorption
Corrosion and heat resistance
Easy shaping and cutting
Reusable and durable
Knitted Mesh is widely used in the petroleum,chemistry, metallurgy, machine, pharmaceuticals, automobile industry and environmental protection:
Gas and liquid filtration
Demister pads
EMI shielding
Sealing and cushioning
Natural finish
Degreased and cleaned
Passivation
Material: SS304, SS316, Monel
Wire diameter: 0.08–0.35 mm
Porosity: 75–98%
Temperature resistance: up to 600°C
Density: 80–500 kg/m³
| Specification of Knitted mesh | ||
|---|---|---|
| Material | stainless steel wire 304, 304L, 316, 316 L, galvanized wire, brass wire, copper wire, titanium wire, alloy wire, nickel wire, nylon wire, PE wire, fiberglass wire, etc | |
| Wire Diameter | Round wire | 0.08-0.55mm |
| Flat wire | 0.1*0.4mm,0.1*0.3mm,0.2*0.4mm | |
| Hole Size | 4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc. | |
| Width | 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc. | |
| Length | 30-200m | |
| Wire Number | Single wire , double wires, several wires. | |
| Mesh type | Standard type | 40-100 60-150 105-300 140-400 |
| Highly efficiency type | 60-100 80-100 80-150 90-150 150-300 200-400 | |
| Damping type | 30-50 48-50 30-60 30-80 50-120 | |
| Packing | With carton or wooden box | |
Wire diameter customization
Roll or compressed form
Custom density
OEM packaging
