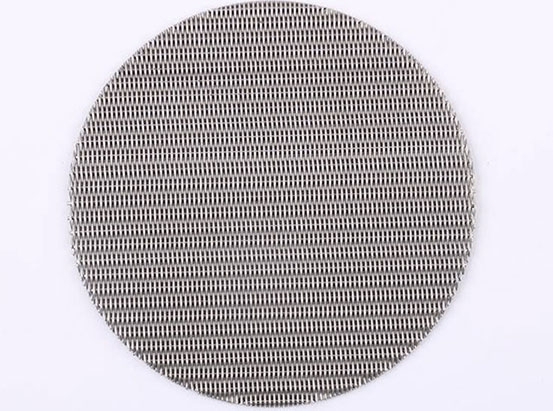

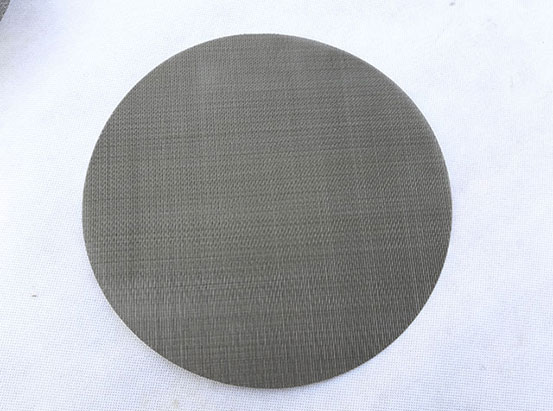

JLHY filter discs and filter packs are compact metal filtration components used in fluid and gas filtration systems for effective particle removal.
Compact and efficient design
Uniform filtration accuracy
Easy installation
Reusable and cleanable
Cost-effective solution
Hydraulic systems
Fuel filtration
Chemical processing
Laboratory filtration
Polished
Passivation
Electroplated (optional)
Material: SS304, SS316
Diameter: 10–300 mm
Filtration: 5–300 μm
Operating pressure: up to 25 MPa
Temperature resistance: up to 500°C
| Material: | Stainless steel wire, Brass wire, Phosphor copper wire mesh, Black wire cloth, Galvanized wire mesh, Stainless steel sintered, Perforated Metal Mesh, Nickel Wire Mesh, Monel Mesh, Inconel Mesh Etc. |
| Shapes: | Square, Rectangular, Round, Oval, Annular, Kidney shape, Fan-shaped, Irregular shape and custom designs. |
| Disc sizes: | Round shape: Diameter 44mm - 600mm. Ring shape: Inner diameter: 18mm - 250mm. Outer diameter: 50mm - 350mm. Rectangular shape: Width: 50mm - 100mm. Length: 60mm - 400mm. The size also can be customized. |
| Thickness: | 0.1mm - 6mm. |
| Mesh size: | 10 mesh - 635 mesh. |
| Structure: | Single Layer, Double Layer And Multi-layers |

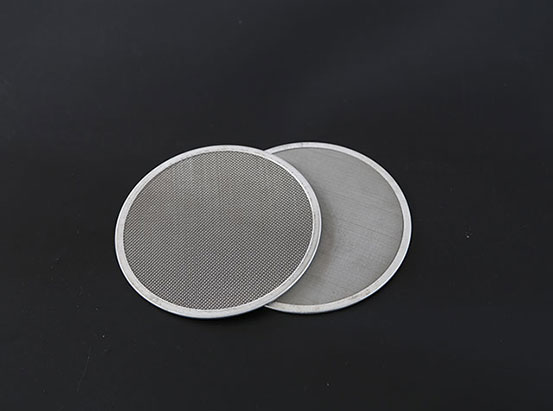

| Technique: | with or without frame, Spot Welded or without Spot Welded |
Custom diameter and thickness
Multi-layer structures
Edge welding or crimping
Custom packaging
