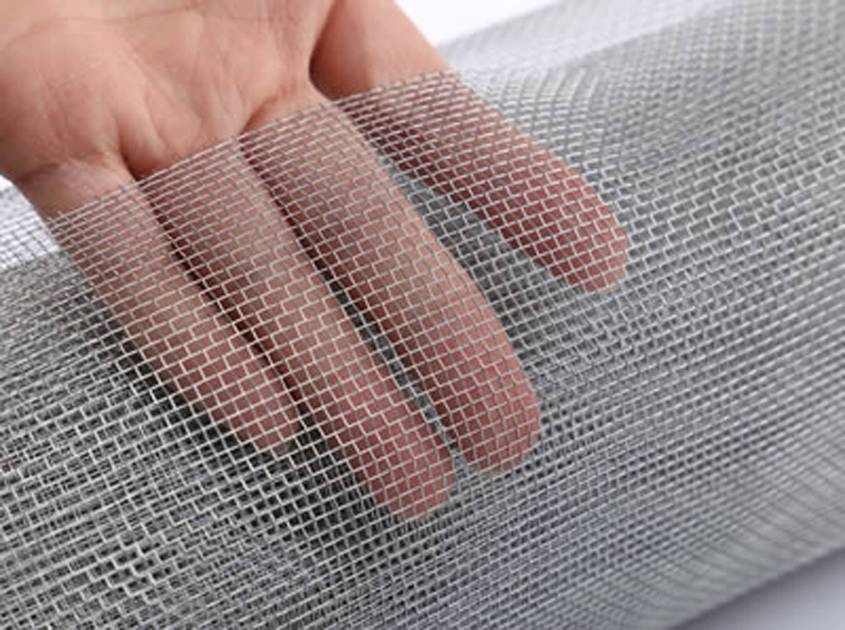

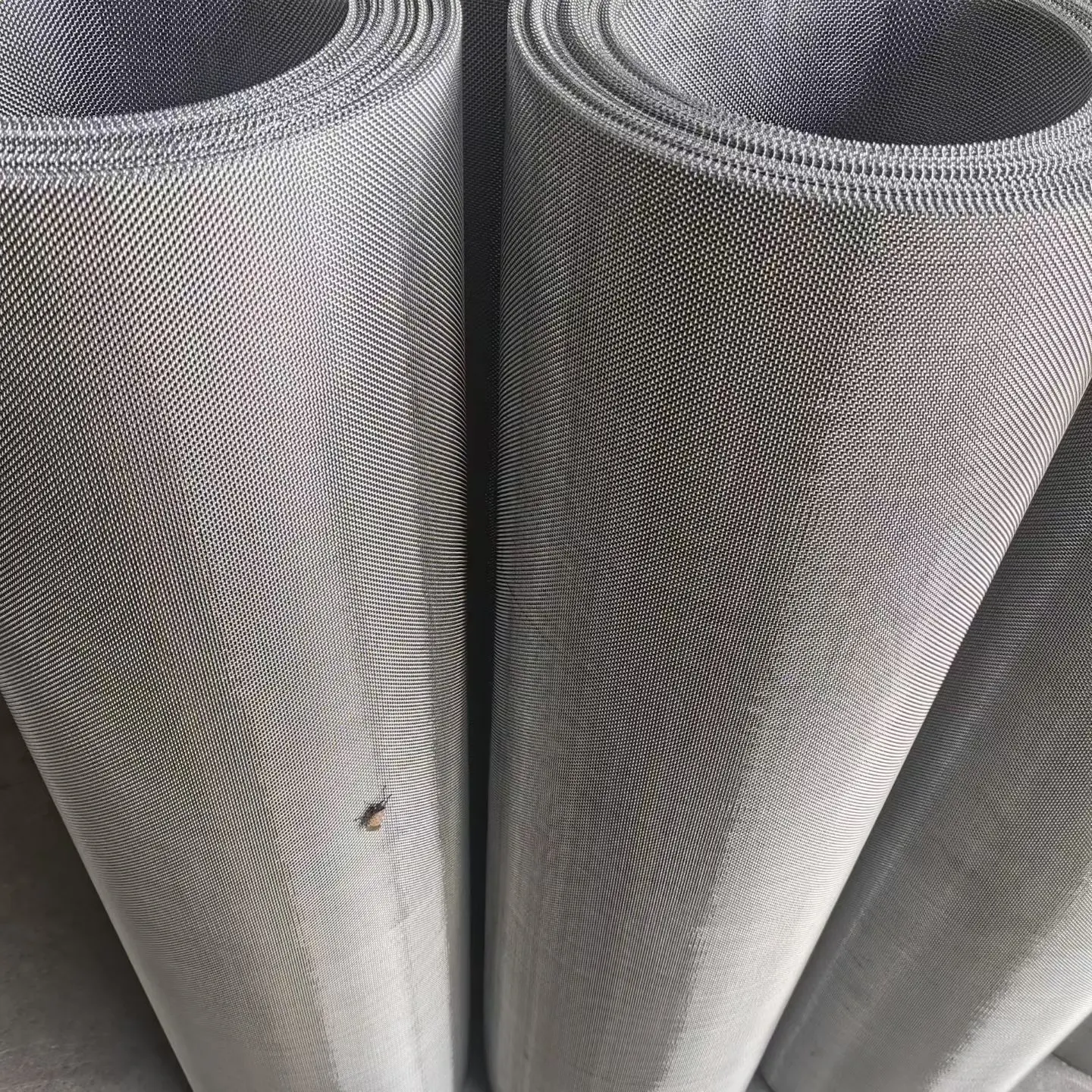

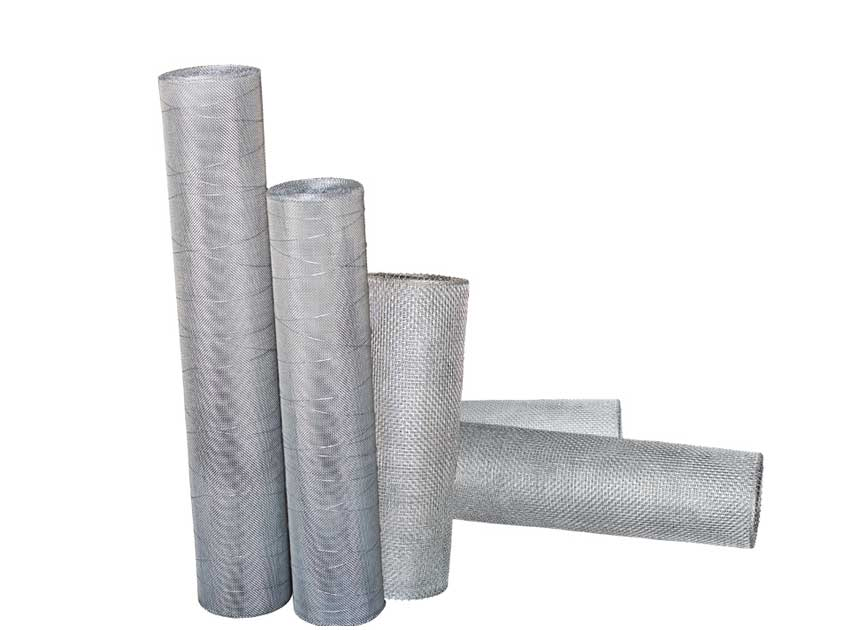

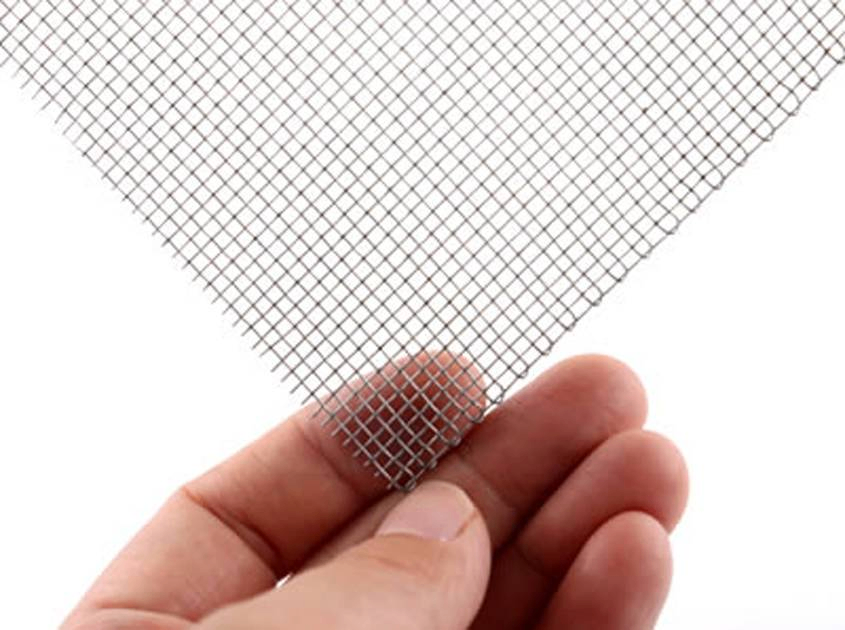

Galvanized wire mesh, also known as galvanized iron wire mesh, is a common material used for its excellent corrosion resistance, durability, and effectiveness in preventing rust. It is widely used in various industries such as construction, automotive, and petrochemical for its ability to protect against environmental factors like moisture, temperature fluctuations, and pollution. The material consists of a wire frame coated with a zinc layer, which provides a long lifespan and resistance to outdoor elements. The wire mesh has a fine wire diameter and narrow mesh size, making it strong and stable while maintaining flexibility. Its high strength-to-weight ratio makes it suitable for various applications. Additionally, galvanized wire mesh can be coated with protective layers such as finite-life or infinite-life coatings to further enhance its performance and durability. The coated mesh can also be effectively welded and fabricated, making it a versatile choice for manufacturers. Galvanized wire mesh is suitable for both outdoor and indoor use, depending on its coating. Its advantages include long-lasting strength, low maintenance, and energy efficiency. Overall, galvanized wire mesh is a reliable and durable material for protecting against corrosion and environmental stressors in various industrial and commercial applications.
Fencing
Industrial screening
9. Procedures: Hot dip Gal. before/after Weaving, Electro Gal. before/after Weaving
10. Zinc coating: up to 260 g/m²
| Mesh/inch | Wire Dia. (mm) | Aperture (mm) |
| 2 | 1.60 | 11.10 |
| 4 | 1.20 | 5.15 |
| 5 | 1.00 | 4.08 |
| 6 | 0.80 | 3.43 |
| 8 | 0.60 | 2.57 |
| 10 | 0.55 | 1.99 |
| 12 | 0.50 | 1.61 |
| 14 | 0.45 | 1.36 |
| 16 | 0.40 | 1.19 |
| 18 | 0.35 | 1.06 |
| 20 | 0.30 | 0.97 |
| 30 | 0.25 | 0.59 |
| 40 | 0.20 | 0.44 |
| 50 | 0.16 | 0.35 |
| 60 | 0.15 | 0.27 |
| Available in width: 0.60m-1.5m | ||
OEM Options
Wire diameter and mesh size
