1. Material of Hi Rib Mesh: hot-dipped galvanized steel sheets.
2. Technology of High Rib Mesh: its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath.
3. Feature of High Rib Mesh: Excellent engineering quality, construction security.
4. Application of High Rib Mesh: It is widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.

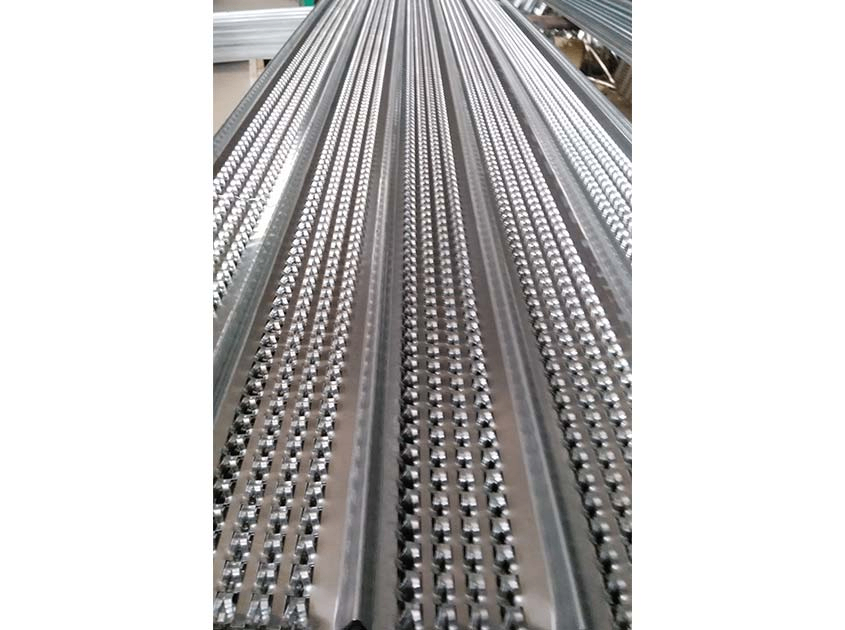

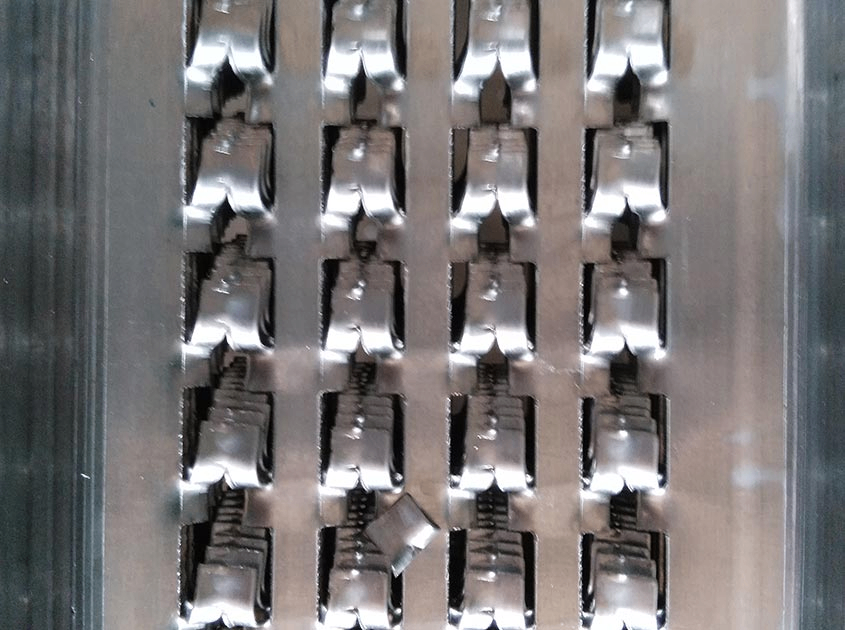

High Ribbed Formwork consisting of steel sheets formed into mesh and U pattern rib bone, will produce a surface with concrete which will bond directly to the next pour without any special treatment.
High Ribbed Formwork Materials
High-Ribbed Formwork is manufactured from hot-dip zinc coated steel sheet to BS 2989 Z2 G275 standards.
High Ribbed Formwork Manufacture

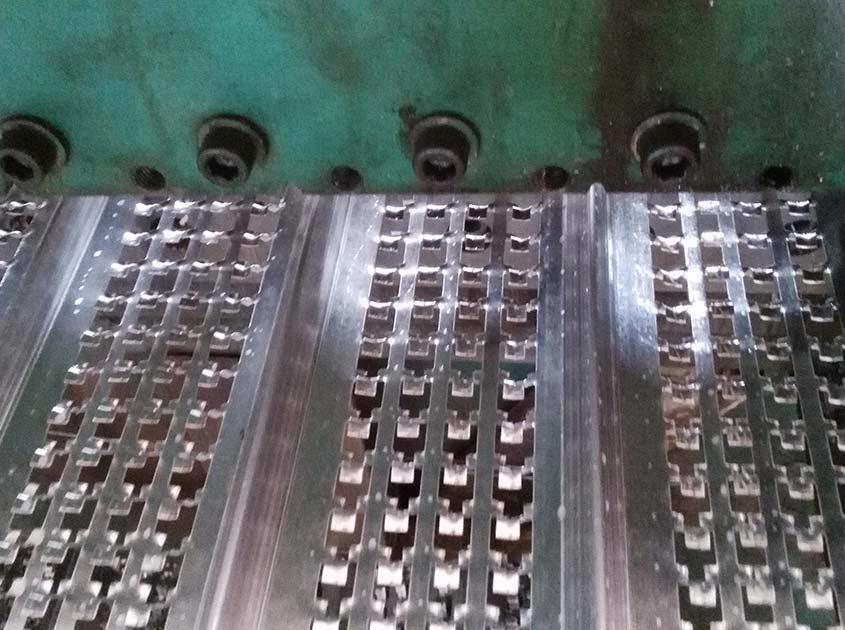

The mesh and ribs are formed on machines which first cut and press the mesh and then roll-form the ribs. At the same time the material is stretched to form an expanded mesh.
High Ribbed Formwork consisting of steel sheets formed into mesh and U pattern rib bone, will produce a surface with concrete which will bond directly to the next pour without any special treatment.
High Ribbed Formwork Materials
High-Ribbed Formwork is manufactured from hot-dip zinc coated steel sheet to BS 2989 Z2 G275 standards.
High Ribbed Formwork Manufacture
The mesh and ribs are formed on machines which first cut and press the mesh and then roll-form the ribs. At the same time the material is stretched to form an expanded mesh.
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance (mm) |
| QKHR021 | 0.21 | 1.70 | 450 | 2200 | 14-20 | 90 |
| QKHR023 | 0.23 | 1.90 | 450 | 2200 | 14-20 | 90 |
| QKHR030 | 0.30 | 2.48 | 450 | 2200 | 14-20 | 90 |
| QKHR035 | 0.35 | 2.90 | 450 | 2200 | 14-20 | 90 |
| QKHR040 | 0.40 | 3.30 | 450 | 2200 | 14-20 | 90 |
| QKHR045 | 0.45 | 3.70 | 450 | 2200 | 14-20 | 90 |
| QKHR050 | 0.50 | 4.10 | 450 | 2200 | 14-20 | 90 |
Note: Special size and specification can be customized.
