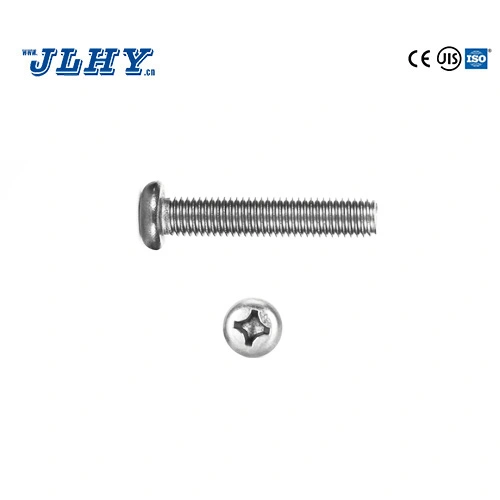

The TA2 Phillips Round Head Machine Screw is manufactured from Titanium Grade 2 (commercially pure titanium), offering excellent corrosion resistance, moderate strength, and lightweight performance. The Phillips drive ensures easy installation with standard tools, while the round head design provides a smooth, finished appearance suitable for visible assemblies. They are widely used in electronics, marine equipment, chemical processing, medical devices, and light industrial applications, making them a preferred choice for global B2B buyers.
Material: Titanium Grade 2 (TA2)
Excellent Corrosion Resistance: Ideal for saltwater, chemical, and outdoor environments
Lightweight: About 45% lighter than stainless steel
Non-Magnetic: Suitable for electronic and sensitive equipment
Phillips Drive: Easy and efficient installation
Smooth Round Head: Clean appearance and even load distribution
Factory-direct manufacturing & export
ISO / DIN compliant production
Stable quality and batch consistency
Competitive pricing for bulk orders
Fast response for global B2B inquiries
Contact us today for pricing, samples, drawings, or OEM customization of TA2 Phillips Round Head Machine Screws. We support distributors, brand owners, and industrial buyers worldwide.
Electronics & Electrical Equipment
Marine & Offshore Hardware
Medical & Laboratory Devices
Chemical Processing Equipment
Automotive & Lightweight Assemblies
Industrial Enclosures & Panels
| Property | Typical Value |
|---|---|
| Tensile Strength | ≥ 345 MPa |
| Yield Strength | ≥ 275 MPa |
| Elongation | ≥ 20% |
| Hardness | HV 150–200 |
| Density | 4.51 g/cm³ |
| Operating Temperature | -200°C to +400°C |
| Thread Size | Length (mm) | Phillips Drive |
|---|---|---|
| M2 | 4 – 16 | PH0 |
| M2.5 | 5 – 20 | PH0 |
| M3 | 6 – 30 | PH1 |
| M4 | 8 – 40 | PH2 |
| M5 | 10 – 50 | PH2 |
| M6 | 12 – 60 | PH3 |
| M8 | 16 – 80 | PH3 |
#2, #4, #6, #8, #10
UNC / UNF threads available upon request
