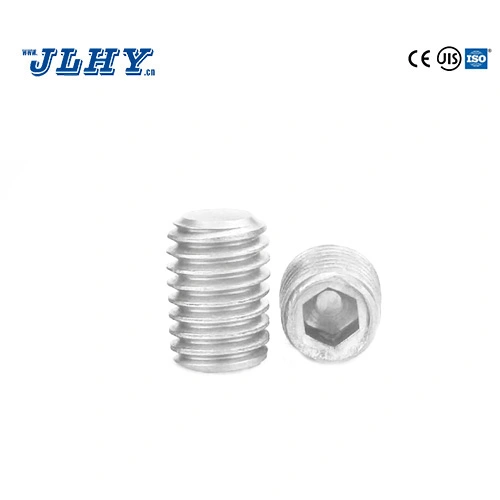

The TC4 Flat Point Set Screw, manufactured from Titanium Grade 5 (Ti-6Al-4V), is a high-performance fastening solution designed for precision positioning, locking, and torque transmission. With its flat point design, this set screw provides secure contact without damaging mating surfaces, making it ideal for applications requiring repeatable adjustment and high holding strength.
TC4 titanium offers an exceptional combination of high tensile strength, low weight, and superior corrosion resistance, outperforming stainless steel in demanding environments.
Material: Titanium Grade 5 (TC4 / Ti-6Al-4V)
Flat Point Design: Prevents surface damage and ensures stable contact
High Strength-to-Weight Ratio: Stronger and lighter than stainless steel
Outstanding Corrosion Resistance: Suitable for marine, chemical, and outdoor use
Non-Magnetic & Biocompatible: Ideal for medical and electronic applications
Precision Threads: Smooth installation and reliable locking
Factory-direct supply with stable quality control
Global export experience for EU & US markets
ISO / DIN compliant production
Competitive pricing for bulk orders
Reliable lead times for industrial projects
Aerospace & Aviation Components
Automotive & Motorsports Assemblies
Industrial Machinery & Automation
Medical Devices & Equipment
Marine & Offshore Installations
Electronics & Precision Instruments
| Property | Typical Value |
|---|---|
| Tensile Strength | ≥ 895 MPa |
| Yield Strength | ≥ 825 MPa |
| Hardness | HRC 34–36 |
| Density | 4.43 g/cm³ |
| Operating Temperature | -200°C to +400°C |
| Thread Size | Length (mm) | Hex Socket (mm) |
|---|---|---|
| M3 | 3 – 20 | 1.5 |
| M4 | 4 – 25 | 2 |
| M5 | 5 – 30 | 2.5 |
| M6 | 6 – 40 | 3 |
| M8 | 8 – 50 | 4 |
| M10 | 10 – 60 | 5 |
| M12 | 12 – 80 | 6 |
