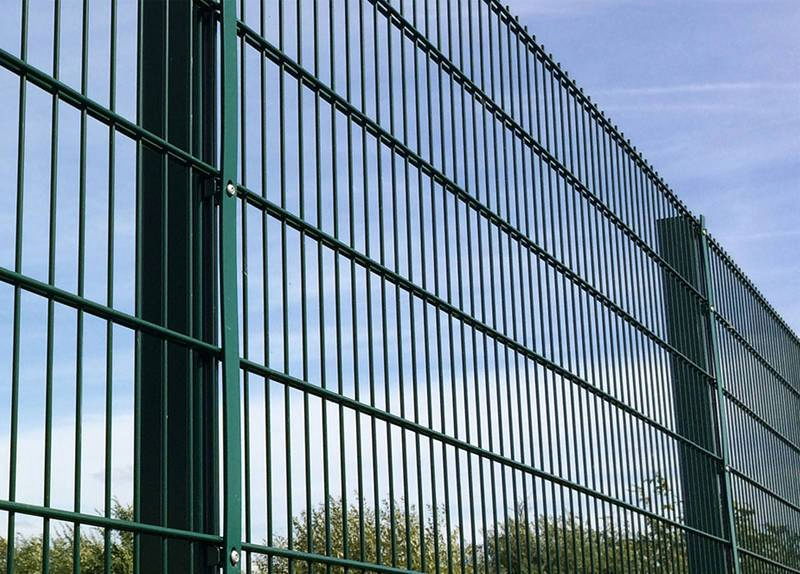

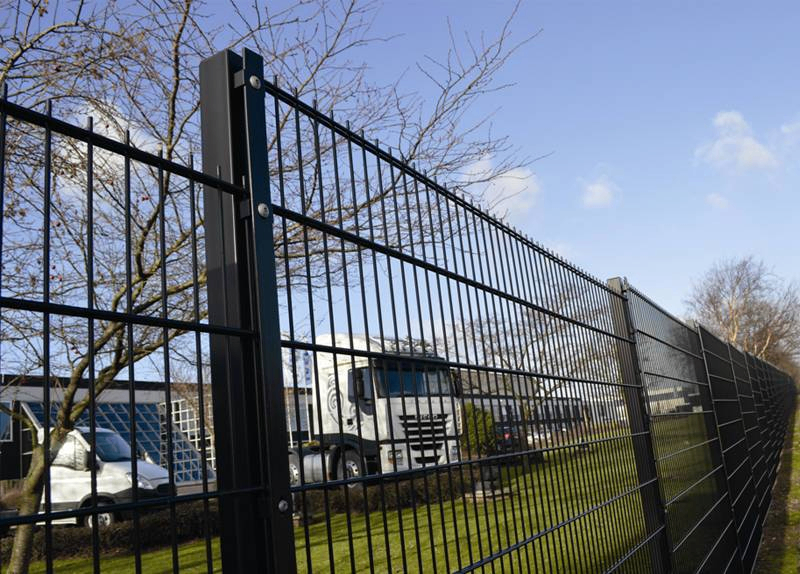

Double Wire Fencing, also known as Twin Wire Fence or 868 Fence, is a robust welded mesh fencing system featuring two horizontal wires welded to one vertical wire. This structure provides superior rigidity, impact resistance, and long-term durability compared with standard single-wire mesh fencing.
As an OEM/ODM double wire fence manufacturer, the system can be customized in wire diameter, panel size, post type, and surface treatment to meet industrial, commercial, and security project requirements.
High Rigidity & Strength
Twin horizontal wires enhance panel stiffness and impact resistance.
Anti-Climb Performance
Small mesh openings reduce climbing ability.
Good Visibility
Flat welded mesh allows clear surveillance and monitoring.
Vandal & Impact Resistant
Suitable for high-traffic and high-risk environments.
Neat & Modern Appearance
Clean lines suitable for urban and commercial projects.
Easy Installation
Modular panels compatible with multiple post systems.
OEM / ODM Customization
Sizes, coatings, colors, and packaging can be tailored.
Double wire fencing is widely used in:
Industrial parks and factories
Warehouses and logistics centers
Schools and educational campuses
Sports facilities and stadiums
Airports and transportation hubs
Commercial buildings and offices
Residential communities
Public infrastructure and utilities
Hot-Dip Galvanized (HDG)
Thick zinc coating for excellent corrosion resistance.
Galvanized + Polyester Powder Coated
Zinc base layer plus powder coating for long service life and aesthetics.
Zn-Al Alloy Coated (Galfan)
Enhanced corrosion protection, ideal for harsh environments.
Green (RAL 6005)
Grey (RAL 7016)
Black (RAL 9005)
Blue, White, or Custom RAL colors available
Custom wire diameters & panel sizes
Project-based engineering support
Private label & export packaging
Compliance with EN, ASTM, ISO standards
Bulk container loading optimization
| Double wire fence Panel | Wire Thickness | Panel Width | Height | Surface Coating |
| Spacing between horizontal wire: 100mm, 150mm, 200mm. Spacing between vertical wire: 50mm, 55mm. | 8mm/6mm/8mm or 6mm/5mm/6mm | 2.0m or 2.50m or 3.0m | 1030mm | Hot Dipped Galvanized (505g/m²) OR Electric Galvanized + Polyester Powder Coated (All colors in Ral) |
| 1230mm | ||||
| 1430mm | ||||
| 1630mm | ||||
| 1830mm | ||||
| 2030mm | ||||
| 2230mm | ||||
| 2430mm | ||||
| 2530mm |
| Post Type | Size | Thickness | Height |
| Square post | 50x50mm, 60x60mm | 1.5mm, 2.0mm, 2.5mm, 3.0mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
| Rectangular post | 40x60mm, 40x80mm | 1.5mm, 2.0mm, 2.5mm, 3.0mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
Note: Special size and specifications can be made according to customers requires.
