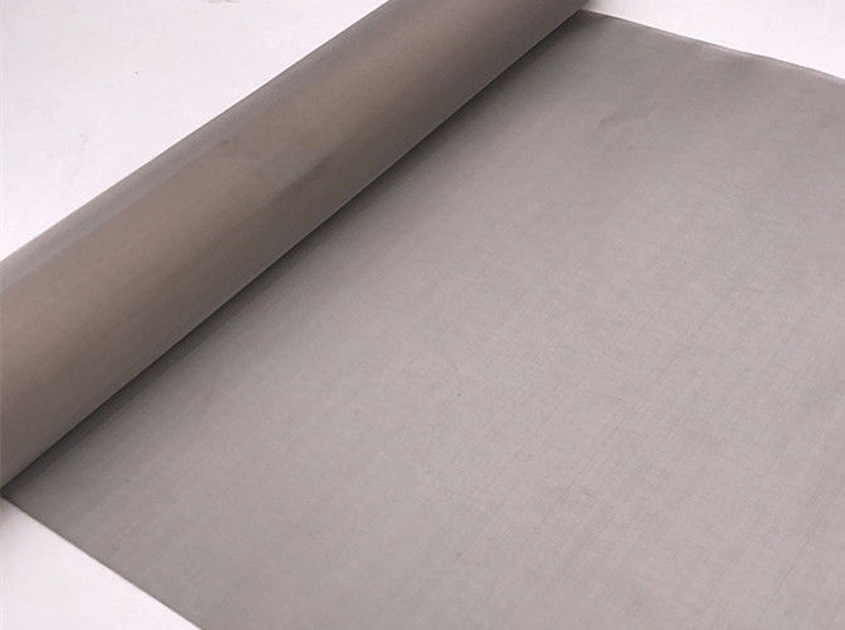

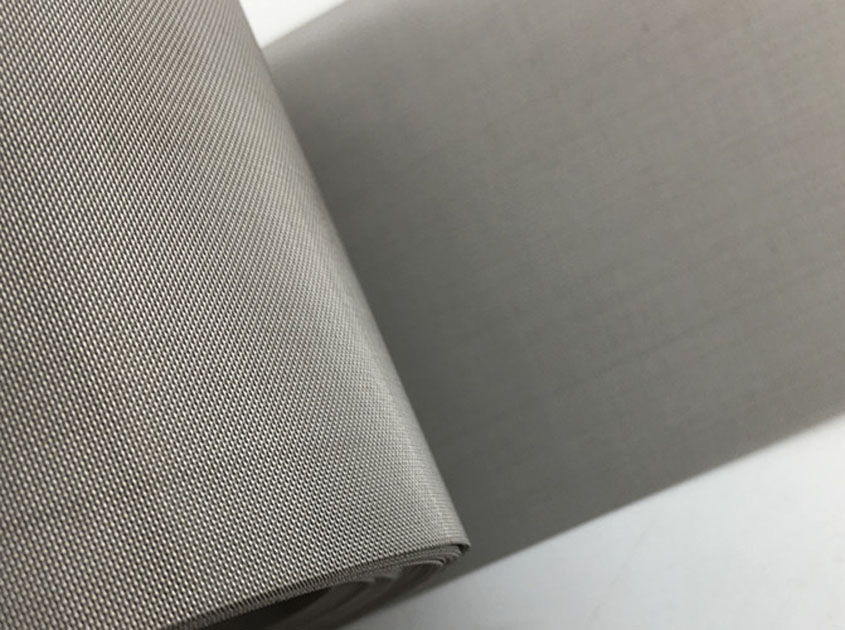

JLHY Monel Wire Mesh is a nickel-copper alloy mesh with exceptional resistance to seawater and corrosive chemicals.
Excellent seawater corrosion resistance
High strength and toughness
Good thermal conductivity
Marine filtration
Oil & gas processing
Chemical separation
Heat exchangers
Material | C | Mn | Si | S | Ni | Cu | Fe |
Monel 400 | ≤0.30 | ≤2.00 | ≤0.50 | ≤0.024 | ≥63 | 28.0~34.0 | ≤2.5 |
Material | C | Mn | Si | S | Ni | Cu | Ti | Al | Fe |
Monel K500 | ≤0.25 | ≤1.50 | ≤0.50 | ≤0.010 | ≥63 | 27.0 | 0.35 | 2.30 | ≤2.0 |
Surface Treatments
Annealed finish
Common Specifications
Mesh count: 5–200
Wire diameter: 0.05–2.0 mm
Technical Data
Melting range: 1300–1350°C
| Mesh (Wires/ in.) | Wire diameter (in.) | Width of opening (in.) | Open area (%) |
| 8 × 8 | 0.0280 | 0.0970 | 60.20 |
| 10 × 10 | 0.0250 | 0.0750 | 56.30 |
| 12 × 12 | 0.0230 | 0.0600 | 51.80 |
| 20 × 20 | 0.0160 | 0.0340 | 46.20 |
| 30 × 30 | 0.0130 | 0.0203 | 37.20 |
| 40 × 40 | 0.0100 | 0.0150 | 36.00 |
| 60 × 60 | 0.0072 | 0.0090 | 30.50 |
| 80 × 80 | 0.0055 | 0.0070 | 31.40 |
| 100 × 100 | 0.0045 | 0.0060 | 30.30 |
| 120 × 120 | 0.0036 | 0.0047 | 32.26 |
| 150 × 150 | 0.0026 | 0.0041 | 37.20 |
| 200 × 200 | 0.0021 | 0.0533 | 33.60 |
Note: Special size and specification can be customized.
OEM / Custom Options
Monel 400 / Monel K500
Custom cut sizes
