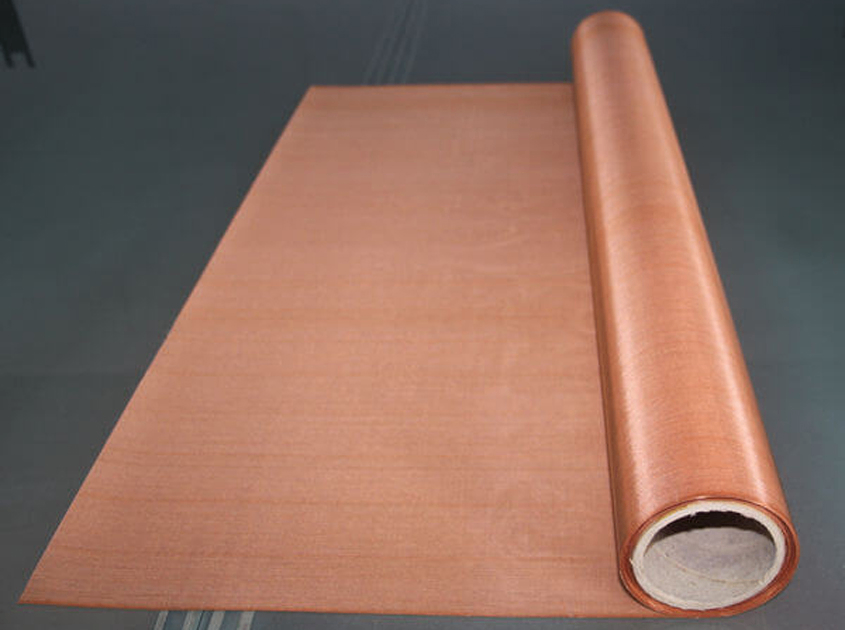

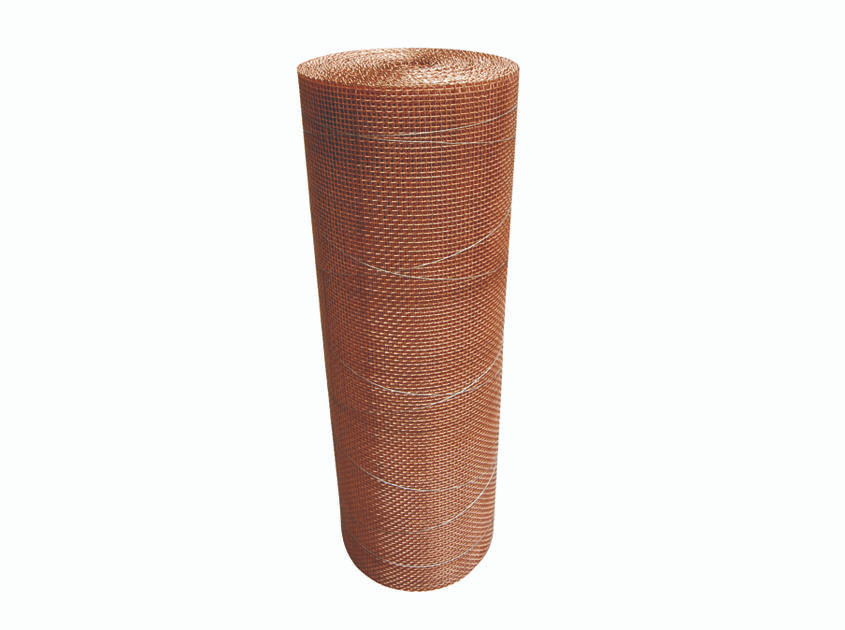

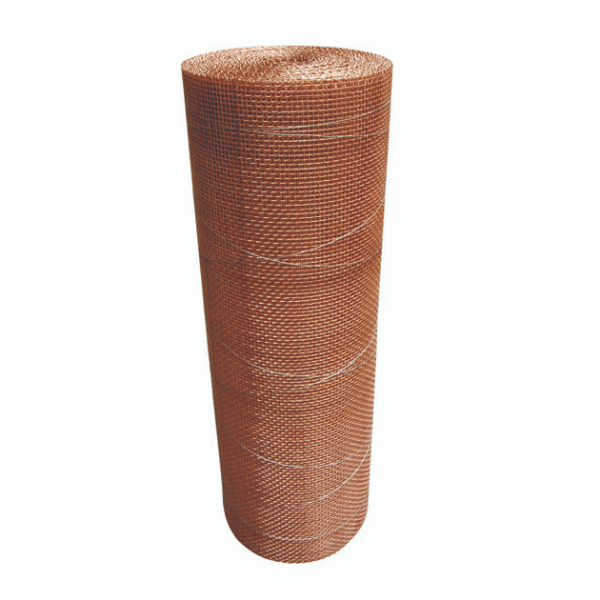

JLHY Copper Wire Mesh offers excellent electrical and thermal conductivity, combined with natural corrosion resistance and antimicrobial properties.
Outstanding electrical conductivity
Excellent thermal transfer
Natural antimicrobial surface
Easy fabrication and forming
EMI/RFI shielding
Faraday cages
Decorative architectural screens
Filtration and ventilation
Surface Treatments
Natural copper finish
Tinned copper (optional)
Common Specifications
Purity: ≥99.9% Cu
Mesh count: 5–300
Wire diameter: 0.03–1.5 mm
Technical Data
Conductivity: ~100% IACS
Melting point: 1083°C
| MESH | WIRE DIAMETER | APERTURE/OPENING | %OPEN AREA | ||
| INCH | MM | INCH | MM | ||
| 4X4 | 0.063 | 1.60 | 0.187 | 4.75 | 56.0 |
| 4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9 |
| 5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 |
| 6X6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 |
| 8X8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 |
| 10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 56.3 |
| 10X10 | 0.020 | 0.51 | 0.080 | 2.03 | 64.0 |
| 12X12 | 0.023 | 0.584 | 0.060 | 1.52 | 51.8 |
| 14X14 | 0.020 | 0.508 | 0.051 | 1.30 | 51.0 |
| 16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 |
| 18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 |
| 20X20 | 0.020 | 0.508 | 0.0300 | 0.76 | 36.0 |
| 20X20 | 0.016 | 0.406 | 0.0340 | 0.86 | 46.2 |
| 24X24 | 0.014 | 0.356 | 0.0277 | 0.70 | 44.2 |
| 30X30 | 0.013 | 0.330 | 0.0203 | 0.52 | 37.1 |
| 35X35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 |
| 40X40 | 0.010 | 0.254 | 0.0150 | 0.38 | 36.0 |
| 50X50 | 0.009 | 0.229 | 0.0110 | 0.28 | 30.3 |
| 50X50 | 0.008 | 0.203 | 0.0120 | 0.31 | 36.0 |
| 60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 |
| 80X80 | 0.0065 | 0.165 | 0.0060 | 0.15 | 23.0 |
| 80X80 | 0.0055 | 0.140 | 0.0070 | 0.18 | 31.4 |
| 90X90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 |
| 100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 |
| 100X100 | 0.004 | 0.102 | 0.0060 | 0.15 | 36.0 |
| 110X110 | 0.0040 | 0.1016 | 0.0051 | 0.1295 | 30.7 |
| 120X120 | 0.0037 | 0.0940 | 0.0064 | 0.1168 | 30.7 |
| 150X150 | 0.0026 | 0.0660 | 0.0041 | 0.1041 | 37.4 |
| 160X160 | 0.0025 | 0.0635 | 0.0038 | 0.0965 | 36.4 |
| 180X180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 34.7 |
| 200X200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 |
| 250X250 | 0.0016 | 0.0406 | 0.0024 | 0.0610 | 36.0 |
| 270X270 | 0.0016 | 0.0406 | 0.0021 | 0.0533 | 32.2 |
| 300X300 | 0.0051 | 0.0381 | 0.0018 | 0.0457 | 29.7 |
| 325X325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30.0 |
Note: Special size and specification can be customized.
OEM / Custom Options
Custom mesh count
Cut-to-size sheets and rolls
