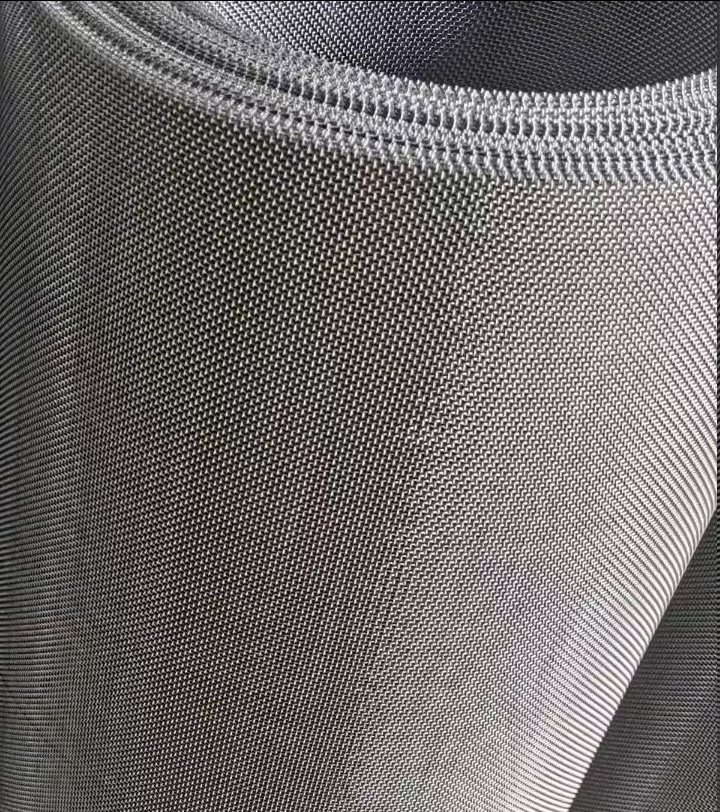

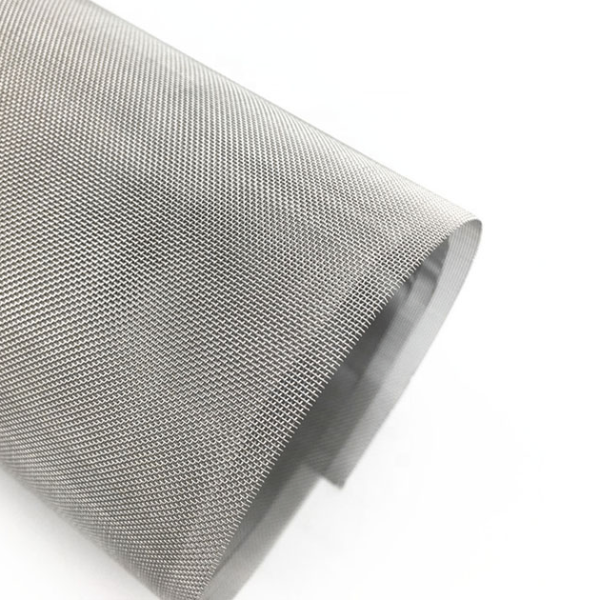

Classic over-under weave with uniform openings
High tensile strength and dimensional stability
Excellent corrosion and oxidation resistance
Smooth surface, easy to clean and fabricate
Available in ultra-fine to heavy-duty meshes
Industrial filtration and separation
Food and pharmaceutical processing
Laboratory sieving
Architectural and decorative panels
Screen printing and EMI shielding
Plain weave wire mesh can be woven up to 400 mesh.
Wire diameter: 0.018-2.03mm
Common Width: 0.914m, 1.0m, 1.22m, 1.5m, special requirement can be customized.
Weave Pattern: Plain or Twill Weaved Stainless Steel Wire Mesh
Surface Treatments
Pickling & passivation
Electropolishing (optional)
Common Specifications
Materials: SS304, SS304L, SS316, SS316L
Mesh count: 1–400 mesh
Wire diameter: 0.02–2.0 mm
Width: up to 2000 mm
Technical Data
Weave type: Plain weave
Open area: 25–70%
Temperature resistance: up to 800°C (SS316)

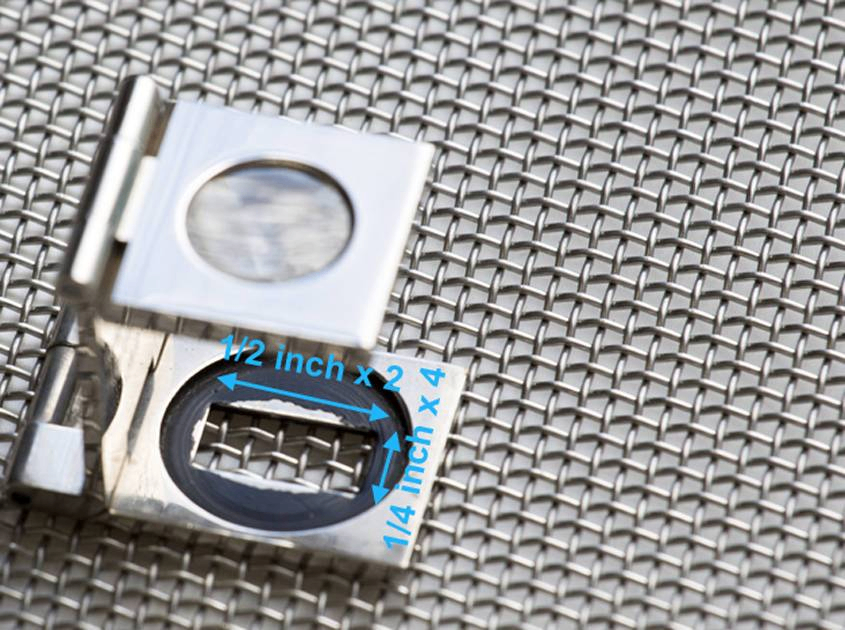

| Meshes Per Linear Inch | Diameter of Wire | Width of Opening | Open Area, % | ||
| Inches | mm | Inches | mm | ||
| 10 x 10 | 0.047 | 1.2 | 0.053 | 1.34 | 28.1 |
| 14 x 14 | 0.032 | 0.8 | 0.039 | 1.52 | 29.8 |
| 16 x 16 | 0.028 | 0.7 | 0.035 | 0.89 | 30.5 |
| 18 x 18 | 0.018 | 0.45 | 0.038 | 0.96 | 48.3 |
| 20 x 20 | 0.016 | 0.40 | 0.034 | 0.86 | 46.2 |
| 24 x 24 | 0.014 | 0.35 | 0.028 | 0.71 | 44.2 |
| 35 x 35 | 0.012 | 0.30 | 0.017' | 0.43 | 33.8 |
| 40 x 40 | 0.0095 | 0.24 | 0.016 | 0.40 | 38.4 |
| 50 x 50 | 0.009 | 0.23 | 0.011 | 0.28 | 30.3 |
| 60 x 60 | 0.0075 | 0.19 | 0.009 | 0.22 | 30.5 |
| 70 x 70 | 0.0065 | 0.17 | 0.008 | 0.20 | 29.8 |
| 80 x 80 | 0.0070 | 0.18 | 0.006 | 0.15 | 19.4 |
| 90 x 90 | 0.0055 | 0.14 | 0.006 | 0.15 | 25.4 |
| 100 x 100 | 0.0045 | 0.11 | 0.006 | 0.15 | 30.3 |
| 120 x 120 | 0.0040 | 0.10 | 0.0043 | 0.11 | 26.6 |
| 165 x 165 | 0.0019 | 0.048 | 0.0041 | 0.10 | 44.0 |
| 180 x 180 | 0.0020 | 0.050 | 0.0035 | 0.09 | 41.1 |
| 220 x 220 | 0.0019 | 0.048 | 0.0026 | 0.066 | 33.0 |
| 250 x 250 | 0.0016 | 0.040 | 0.0024 | 0.061 | 36.0 |
| 400 x 400 | 0.0010 | 0.025 | 0.0015 | 0.038 | 36.0 |
| 500 x 500 | 0.0010 | 0.025 | 0.0011 | 0.028 | 25.0 |
| 635 x 635 | 0.0009 | 0.022 | 0.0006 | 0.015 | 14.5 |
Note: Special size and specification can be customized.
OEM Options
Custom mesh count and wire diameter
Roll or sheet cutting
Laser cutting, welding, framing
