Highest electrical conductivity
Antimicrobial properties
Excellent reflectivity
Precision electronics
EMI shielding
Medical devices
Polished silver finish
Common Specifications
Purity: ≥99.99%
Mesh: 10–400
Technical Data
Conductivity: 105% IACS
Melting point: 961°C
| Mesh | Wire Diameter | Opening | Opening | ||
| inch | mm | inch | mm | Area % | |
| 20 mesh | 0.014 | 0.35 | 0.036 | 0.91 | 51.8 |
| 20 mesh | 0.009 | 0.23 | 0.041 | 1.04 | 67.2 |
| 24 mesh | 0.014 | 0.35 | 0.028 | 0.71 | 44.2 |
| 28 mesh | 0.01 | 0.25 | 0.026 | 0.66 | 51.8 |
| 30 mesh | 0.011 | 0.28 | 0.022 | 0.55 | 44.8 |
| 30 mesh | 0.0065 | 0.16 | 0.027 | 0.68 | 64.8 |
| 35 mesh | 0.012 | 0.3 | 0.017' | 0.43 | 33.8 |
| 35 mesh | 0.01 | 0.25 | 0.019 | 0.48 | 42.4 |
| 40 mesh | 0.01 | 0.25 | 0.015 | 0.38 | 36 |
| 40 mesh | 0.0095 | 0.24 | 0.016 | 0.4 | 38.4 |
| 50 mesh | 0.009 | 0.23 | 0.011 | 0.28 | 30.3 |
| 50 mesh | 0.008 | 0.20 | 0.012 | 0.3 | 36 |
| 60 mesh | 0.0075 | 0.19 | 0.009 | 0.22 | 30.5 |
| 60 mesh | 0.0059 | 0.15 | 0.011 | 0.28 | 40.2 |

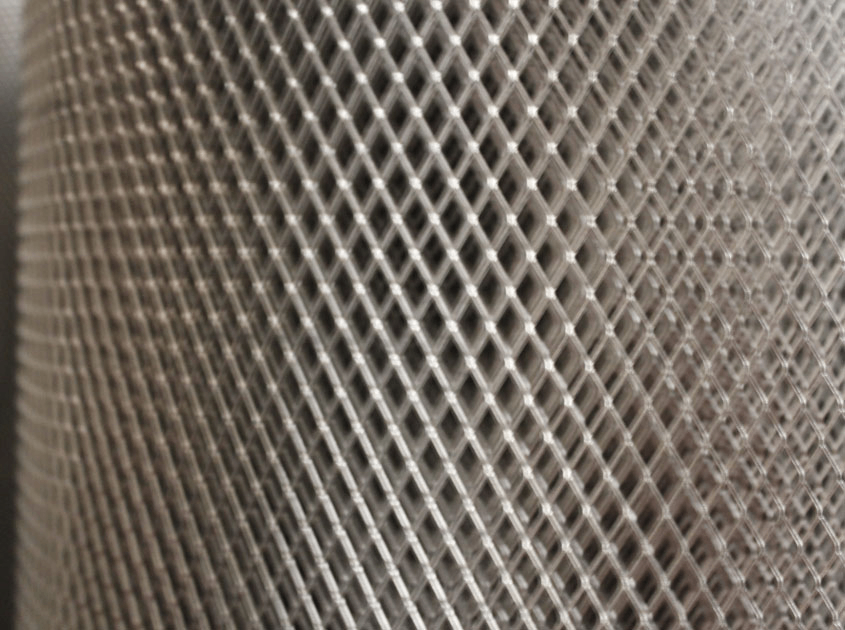

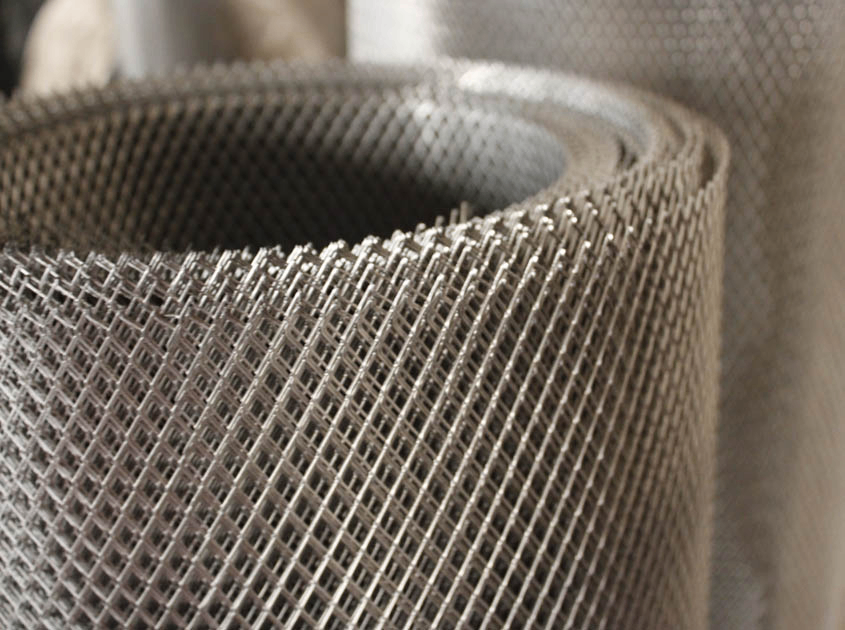

Specifications of silver expanded metal mesh.
Material: 99.9% pure silver sheet.
Technique: Expanded.
Aperture size: 1mm × 2mm, 1.5mm × 2mm, 1.5mm × 3mm, 2mm × 2.5mm, 2mm × 3mm, 2mm × 4mm, 3mm × 6mm, 4mm × 8mm, etc.
Thickness: 0.04mm - 5.0mm.
Length and width customized.
Note: Special size and specifications can be made according to customers requires.
OEM Options
Ultra-fine mesh
Custom purity grades
