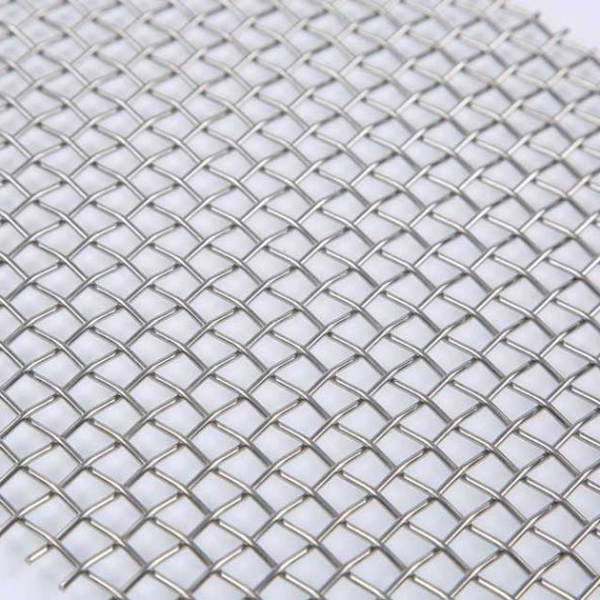

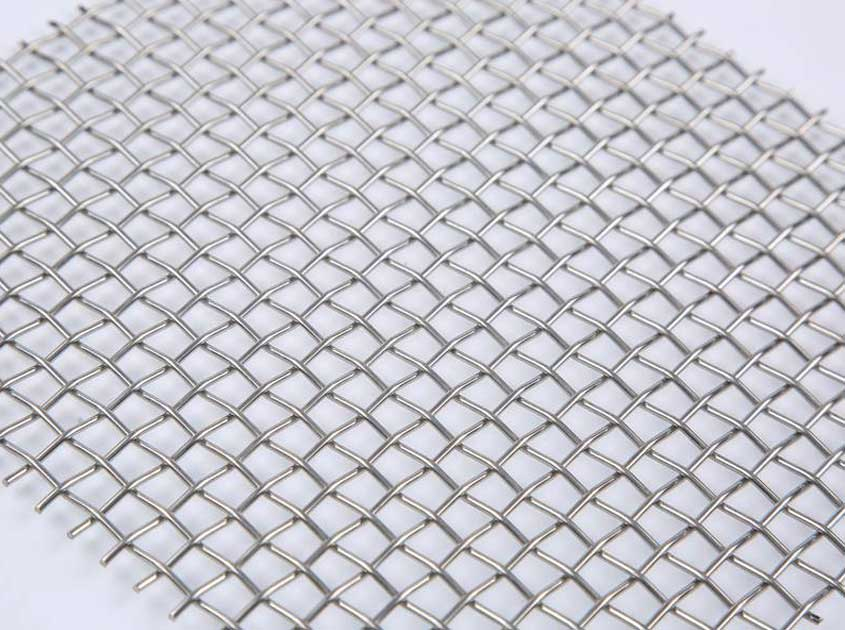

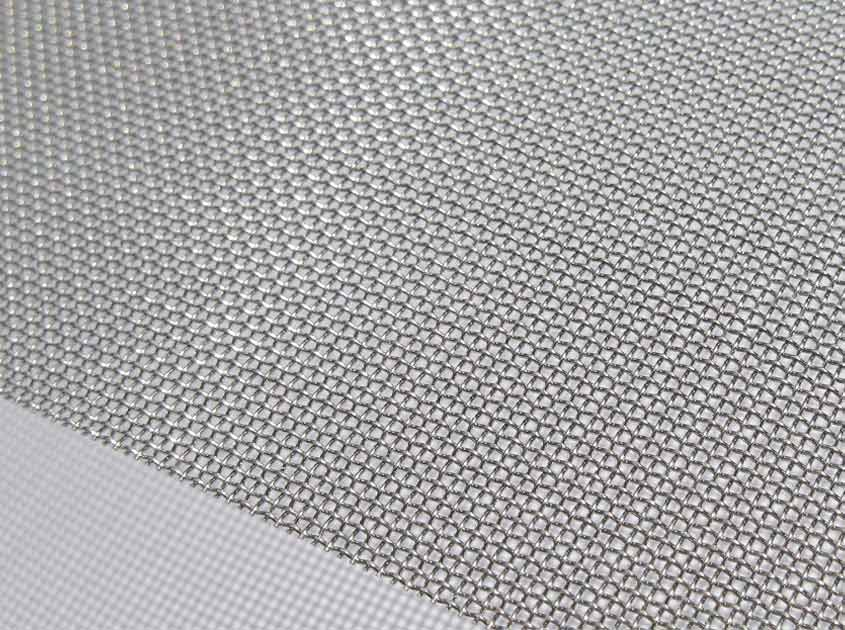

Stainless Steel Wire Mesh features include its high tensile strength and durability, making it suitable for heavy-duty applications. It is highly resistant to corrosion in both acidic and chloride environments, ensuring long-lasting performance. The mesh is lightweight yet strong, offering excellent economic benefits. It can withstand high temperatures and withstand radiation without degrading. Additionally, it is inherently safe, suitable for use near humans and children. The mesh is highly customizable to meet different specifications, making it versatile for various industrial and construction needs.
Filtration
Chemical and food processing
Surface Treatments
Pickled and passivated
Specification sheet of the plain dutch weave woven wire cloth.
| Mesh/Inch | Absolute micron retention (μm) | Weight (kg/m2) | Cloth Thickness (mm) |
| 80 × 300 | 32 - 36 | 0.98 | 0.25 |
| 80 × 400 | 36 - 45 | 0.82 | 0.23 |
| 50 × 250 | 56 - 63 | 1 | 0.32 |
| 50 × 280 | 71 - 75 | 1 | 0.32 |
| 40 × 200 | 75 - 80 | 1.3 | 0.4 |
| 30 × 150 | 80 - 100 | 1 | 0.5 |
| 24 × 110 | 100 - 112 | 2.5 | 0.76 |
| 22 × 140 | 140 - 170 | 2.1 | 0.66 |
| 20 × 150 | 160 - 180 | 1.55 | 0.5 |
| 20 × 150 | 170 - 190 | 1.6 | 0.55 |
| 18 × 100 | 200 - 210 | 2.05 | 0.69 |
| 14 × 110 | 220 - 240 | 2.15 | 0.72 |
| 12 × 95 | 240 - 260 | 2.3 | 0.79 |
| 14 × 88 | 280 - 300 | 3.15 | 0.76 |
| 10 × 90 | 270 - 290 | 2.5 | 0.93 |
| 12 × 64 | 280 - 300 | 4.1 | 1.21 |
| 10 × 70 | 315 - 335 | 3 | 1.04 |
| 8 × 85 | 330 - 350 | 2.5 | 0.93 |
Specification of the twill dutch weave stainless steel wire cloth.
| Mesh/Inch | Absolute micron retention (μm) | Weight (kg/m2) | Cloth Thickness (mm) |
| 510 × 3600 | 4 - 5 | 0.3 | 0.06 |
| 400 × 2800 | 5 - 6 | 0.36 | 0.06 |
| 375 × 2300 | 6 - 7 | 0.39 | 0.08 |
| 325 × 2300 | 7 - 8 | 0.47 | 0.09 |
| 260 × 1550 | 8 - 10 | 0.68 | 0.12 |
| 250 × 1400 | 11 - 12 | 0.68 | 0.12 |
| 200 × 1400 | 11- 13 | 0.75 | 0.14 |
| 130 × 700 | 13 - 15 | 1.6 | 0.28 |
| 200 × 1120 | 15 - 17 | 0.95 | 0.16 |
| 165 × 1400 | 15 - 18 | 0.7 | 0.15 |
| 165 × 1100 | 20 - 21 | 0.9 | 0.16 |
| 80 × 700 | 34 - 36 | 1.2 | 0.26 |
| 40 × 560 | 71 - 80 | 1.7 | 0.39 |
| 30 × 360 | 95 - 106 | 2.6 | 0.54 |
| 30 × 250 | 100 - 112 | 3.2 | 0.65 |
| 20 × 260 | 110 - 120 | 3.1 | 0.67 |
| 28 × 560 | 106 - 112 | 1.95 | 0.46 |
| 24 × 300 | 112 - 118 | 2.85 | 0.63 |
Specification of the Reverse Dutch Weave Stainless Steel Wire Mesh
| Stainless Steel Automatic Belt Type Fitter Saeen | ||||
| Mesh count | Wire dia.(mm) | Mesh thickness(mm) | ||
| warp | weft | warp | weft | |
| 72 | 15 | 0.45 | 0.55 | 1.75 |
| 120 | 15 | 0.35 | 0.45 | 1.25 |
| 132 | 17 | 0.32 | 0.45 | 1.20 |
| 150 | 17 | 0.30 | 0.45 | 1 20 |
| 152 | 24 | 0.27 | 0.40 | 1.05 |
| 152 | 30 | 0.25 | 0.30 | 1.00 |
| 170 | 17 | 0.27 | 0.45 | 1.17 |
| 260 | 40 | 0.15 | 0.25 | 0.65 |
Note: Special size and specifications can be made according to customers requires.
OEM Options
Weave type and mesh count
