Alkali-resistant fiberglass yarn
Lightweight with high tensile strength
Excellent crack resistance
EIFS systems
Wall reinforcement
Waterproofing layers
Surface Treatments
Alkali-resistant coating
Common Specifications
Mesh size: 4×4 mm, 5×5 mm
Weight: 60–160 g/m²
Technical Data
Tensile strength (warp/weft): ≥1000 N/50 mm
| Mesh size | 5x5 mesh, 5x4 mesh, 4x4 mesh, 3x3 mesh, 2.5x2.5 mesh, 1x1 mesh |
| Weight per SQM | 60g-300g |
| Each roll length | 10m, 20m, 30m, 50m-300m |
| Width | 0.5m-2m |
| Example of applications | 1) 75g /m^2 mesh fabric used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface pressure. 2) 110g /m^2 mesh cloth is widely used in indoor and outdoor walls, prevent the various materials (such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break . 3) 145g/m^2 mesh fabric used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures), to prevent cracking the scatter and whole surface pressure, especially in the external wall insulation system (EIFS). 4) 160g /m^2 mesh fabric used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providinga space to movement maintain between the layers, prevent crack and rupture due or temperature change. |
Package
Each Roll shrank by plastic then two rolls in woven bags.
Each Roll Shrank by plastic then four rolls in a carton
Each Roll Shrank by plastic then 33 rolls in a carton put on pallets
Note: Special size and specification can be customized.
OEM Options

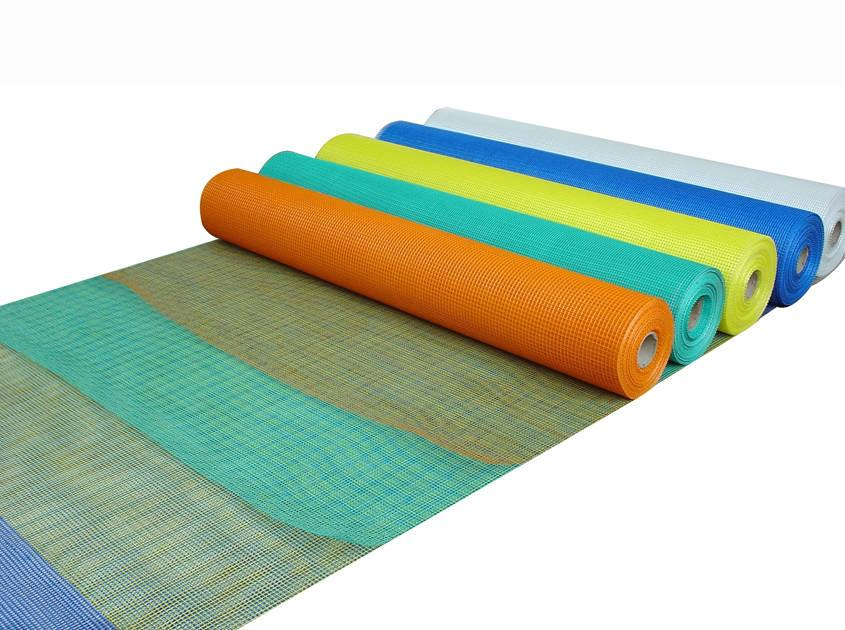

Mesh size and weight
Custom colors and roll sizes
