JLHY Washered Drive Pins are professional-grade fasteners designed for powder-actuated tools to securely fix materials into concrete, masonry, and structural steel. The pre-assembled washer increases bearing surface, improves load distribution, and prevents pull-through of thin or soft materials.
As a direct manufacturer, JLHY offers stable quality, competitive factory pricing, and full OEM/ODM services for importers, distributors, and construction tool brands worldwide.
Stronger Holding Force – Washer distributes load and prevents material pull-through.
High Penetration – Hardened steel ensures reliable driving into concrete and steel.
Reduced Surface Damage – Washer protects thin sheets, membranes, and insulation.
Stable Quality – Automated production and strict QC for consistent performance.
Factory Direct Supply – Cost-effective pricing for bulk B2B orders.
Washered Drive Pins are widely used in:
Drywall & Ceiling Systems – Fixing metal tracks and channels to concrete
HVAC & Electrical – Mounting brackets, conduits, and cable trays
Insulation Installation – Securing boards, membranes, and foam panels
Light Steel Structures – Fastening profiles, frames, and supports
General Construction – Permanent fixing into concrete, brick, and steel
Ideal for wholesalers, importers, and construction tool brands.

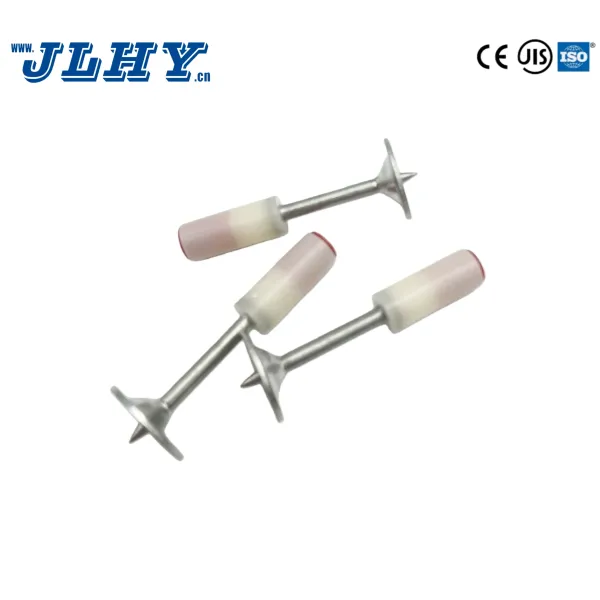

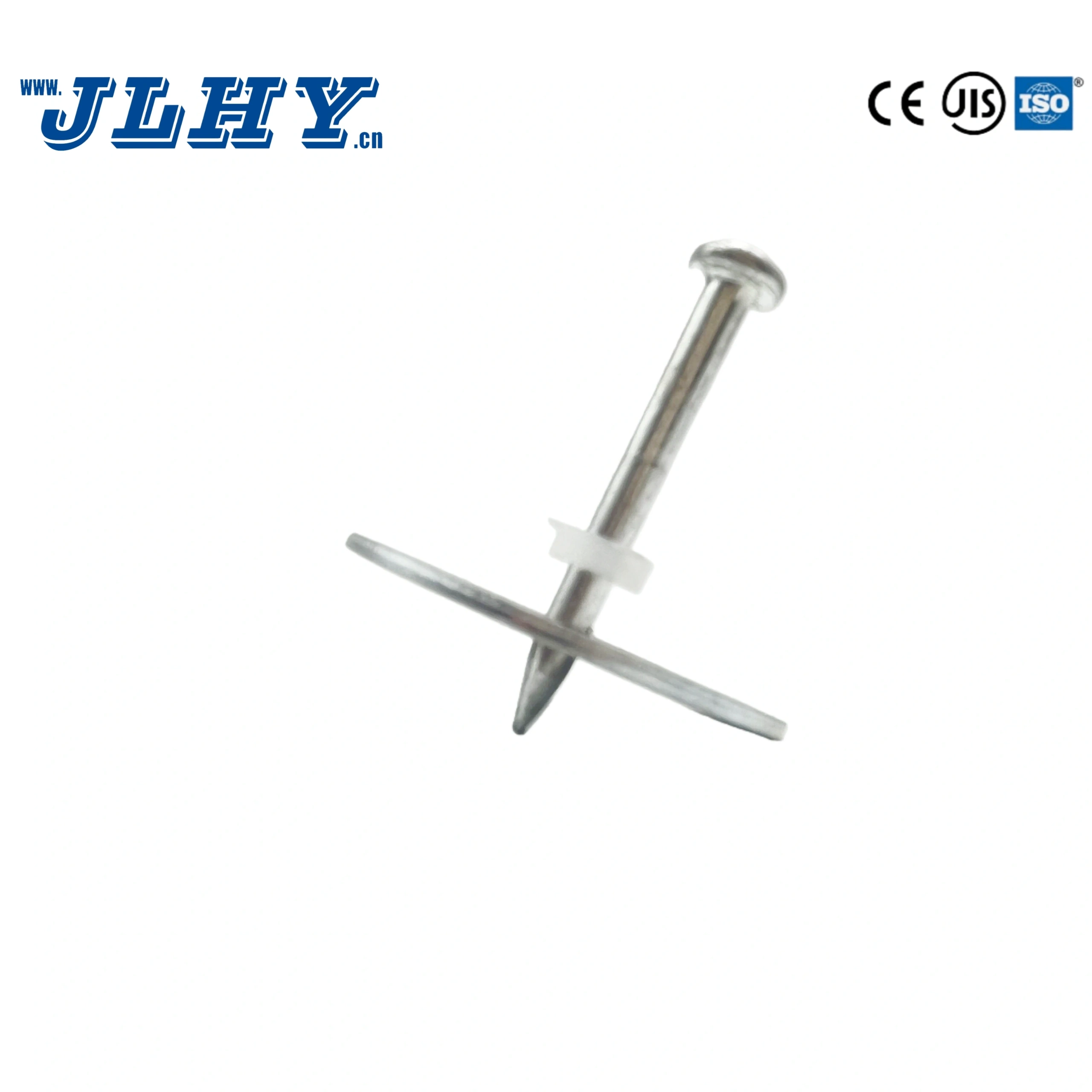

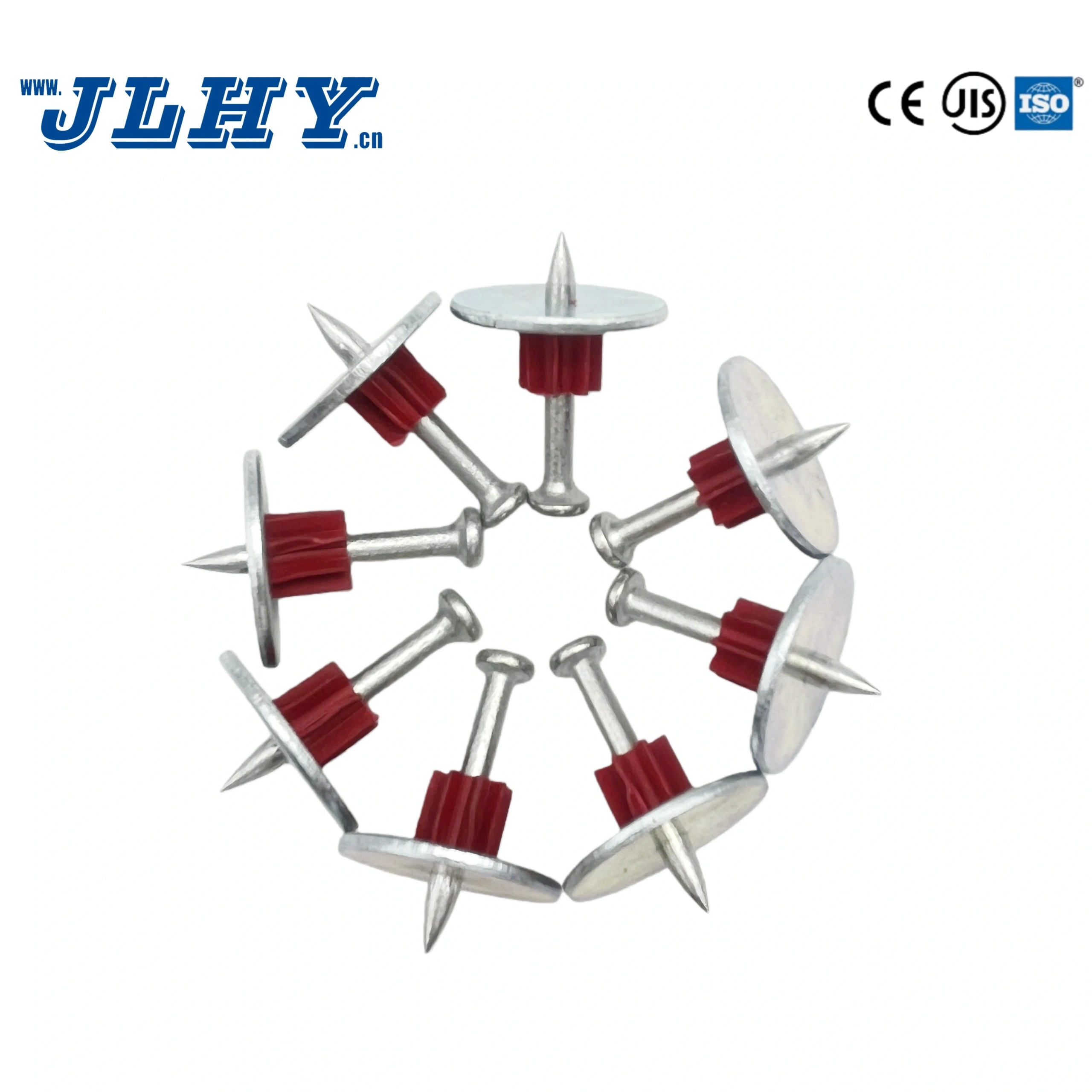

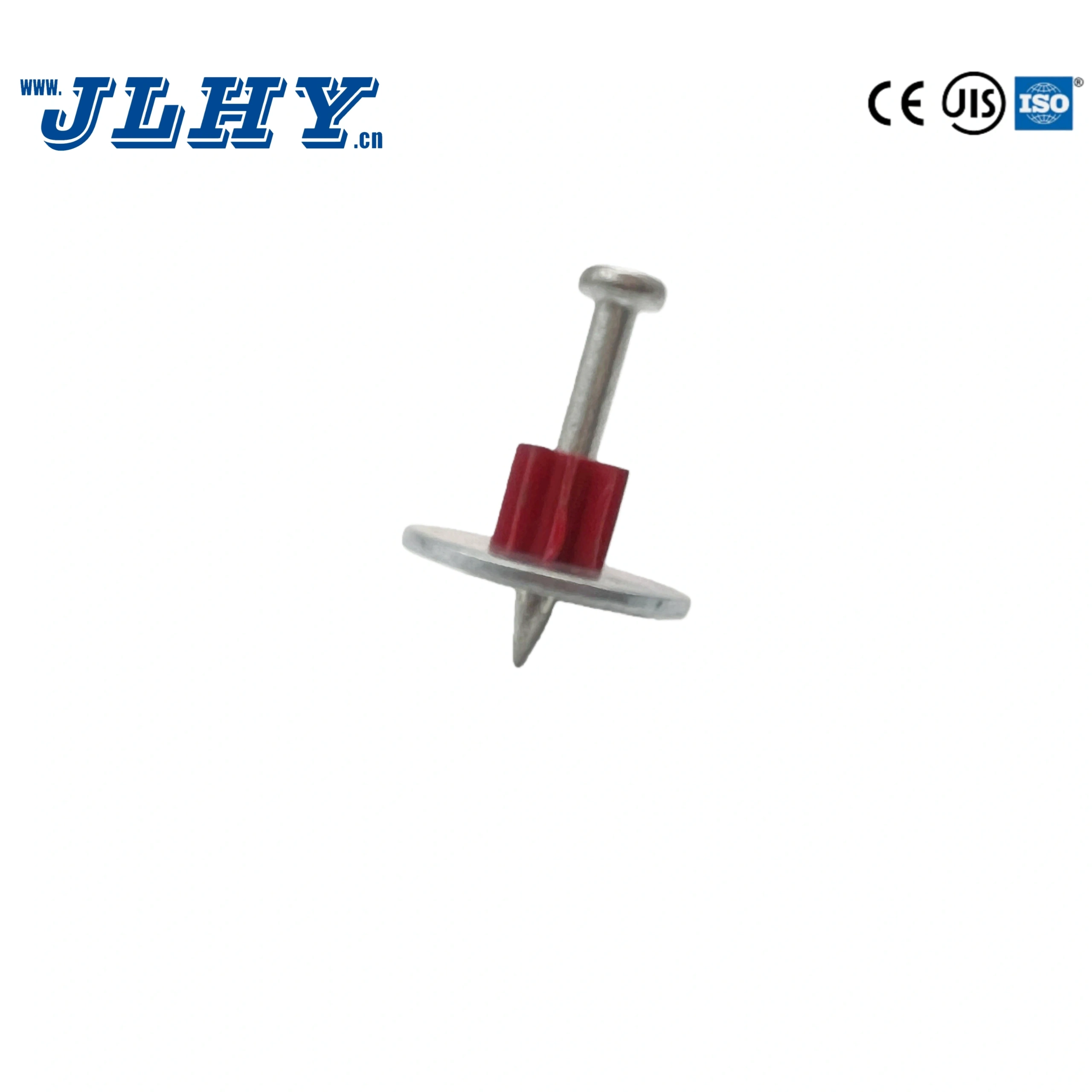

Washered Drive Pins consist of a hardened steel pin with a fixed washer (steel or plastic). The washer provides additional holding area and protects the surface, making these pins ideal for fastening metal tracks, brackets, insulation, membranes, and light steel components.
JLHY drive pins are produced with precision forming and controlled heat treatment to ensure high penetration power, consistent hardness, and reliable holding strength in demanding job-site conditions.
Tianjin JLHY Nail Products Co., Ltd. is a professional fastener manufacturer specializing in drive pins, concrete nails, coil nails, strip nails, and industrial fasteners.
Direct Factory – No trading company markup
Advanced Equipment – Forming, heat treatment, and automated inspection
Stable Production Capacity – Suitable for large-volume export orders
Strict Quality Control – Material selection, hardness testing, dimensional checks
Global Markets – Supplying North America, Europe, Middle East, and Asia
Material: High-carbon or alloy steel, heat-treated
Washer Type: Steel washer / plastic washer / insulation washer
Corrosion Resistance: Zinc-plated, black, or customized coatings
Compatibility: Designed for most powder-actuated tools
Durability: Suitable for high-load and long-term installations
| Item | Standard Options |
|---|---|
| Product Name | Washered Drive Pins |
| Material | High Carbon Steel / Alloy Steel |
| Pin Diameter | 2.7mm / 3.0mm / 3.7mm / Custom |
| Pin Length | 12mm – 65mm (Custom Available) |
| Washer Diameter | 12mm / 15mm / 18mm / 22mm / Custom |
| Washer Material | Steel / Plastic / Insulation Washer |
| Surface Finish | Zinc Plated / Black / HDG / Customized |
| Point Type | Ballistic / Chisel / Diamond |
| Application Base | Concrete, Steel, Masonry |
| Packaging | Bulk Carton / Small Box / OEM Packing |
| MOQ | Factory MOQ Available |
| OEM Service | Yes |
Specifications can be tailored to your fastening system and market requirements.
