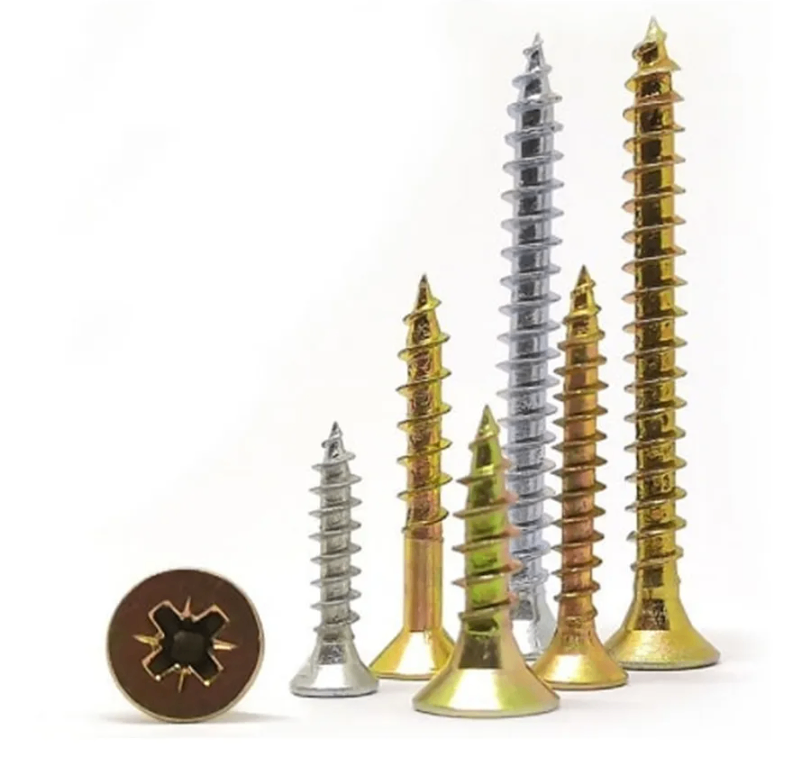

China supply chipboard screw, also named particleboard screws, are self-tapping screws with thin shafts and coarse threads. They are made of carbon steel or stainless steel and then galvanized. Chipboard screws of different lengths can be used in a variety of applications. They are created to fasten low, medium, and high-density chipboard. Many chipboard screws are self-tapping, so there is no need to drill holes in advance.

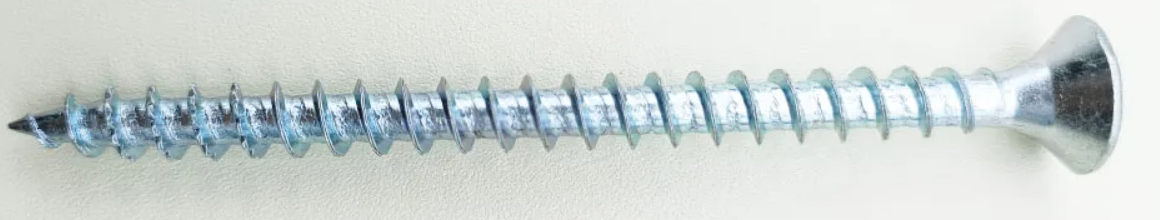

1. Galvanized chipboard screw has a coarse thread and a fine shank to maximize grip into chipboard, MDF, and other soft timbers. The head has nibs which help to remove the chipboard particles when countersinking. The galvanized coating is suitable for most outdoor applications.
2. Chipboard screws come in a variety of lengths and can be used to fasten chipboard in a variety of applications. Average length chipboard screws are often used to join chipboard flooring to regular wood joists. Smaller screws may be used to fasten hinges to chipboard cabinetry. Very long screws may be used to butt chipboard to chipboard when making cabinets. Average screws are 1.5 inches (around 4 cm), small screws are usually ½ inches (around 1.5 cm), longer screws are 5 inches (around 13 cm).
3. Different shapes and materials of chipboard screws are common as well. The most common screws are made out of zinc, yellow zinc, brass, or black oxide. Popular heads are either pan, flat, or bugle, and popular gauges are 8 and 10. Screws may have Phillips or square (Robertson) screw drives.
The chipboard screws are mainly used for woodworking such as furniture assembly or flooring, etc. This is why we also call it screws for particle board or screws MDF. We offer a wide range of chipboard screws whose length is from 12mm to 200mm. Generally, the small chipboard screws are perfect for fastening hinges on chipboard cabinets while larger screws are used to join the bigger pieces of a cabinet, etc.
Basically, there are two kinds of chipboard screws: white zinc plated or yellow zinc plated. The zinc plating isn’t only a layer of protection to resist corrosion, but also matches the aesthetic of the project. Besides our chipboard screw is characterized by a deeper Pozi recess that helps to avoid cam-out and also extends the life of the bit used to drive the screw.
Product name: Chipboard Screw/chipboard screws with saw/spax screw/sawed chipboard screw
Material: Carbon steel, stainless steel, brass.
Head type: flat/countersunk, pan, Double Flat, wafer head, CSK with 4(6) ribs
Finish: zinc plated, Black Oxide, Nickel, Rupert, Dacromet, and so on
Drive Type: Phillips, Pozi, square, Torx
Standard: DIN7505
Packing: bulk, plain box, color box, polybag, PP box + wood Pallet
Specification And Package | ||||
Size D x L (inch) | Size D x L (mm) | Quantity Per Box (pcs) | Boxes Per Carton (pcs) | Total Pieces/ Carton (pcs) |
#6 X 1/2" | 3.5 X 13 | 1000 | 24 | 24000 |
#6 X 5/8" | 3.5 X 16 | 1000 | 24 | 24000 |
#6 X 3/4" | 3.5 X 19 | 1000 | 24 | 24000 |
#6 X 1" | 3.5 X 25 | 1000 | 12 | 12000 |
#6 X 1 1/4" | 3.5 X 32 | 1000 | 12 | 12000 |
#6 X 1 1/2" | 3.5 X 38 | 1000 | 8 | 8000 |
#6 X 2" | 3.5 X 50 | 1000 | 6 | 6000 |
