Appropriate for connecting and reinforcing wooden structures, adhering to the standards set forth in wood structure specifications.
Manufactured from high-quality low-carbon alloy steel and utilizing a specialized heat treatment process, its bending performance, shear strength, and other performance metrics surpass those of conventional wood screws. When employing professional power tools, the screw body remains stable throughout the installation, offering enhanced drilling speed and ease of use.

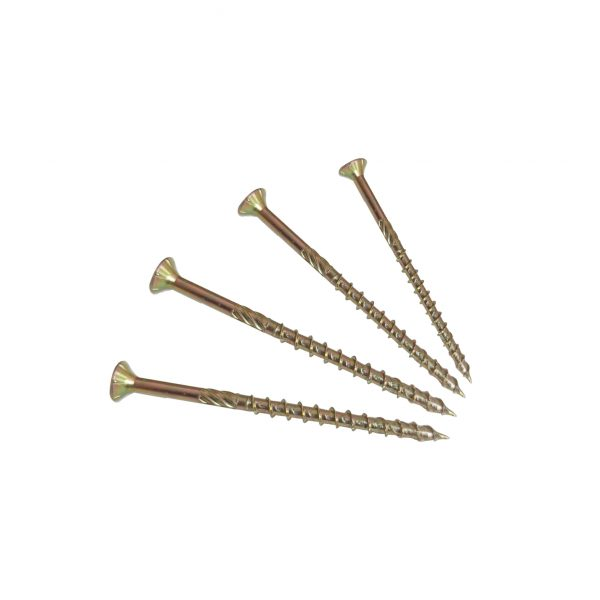

Optimized Torx design for superior torque and easy installation
Strong thread design for improved holding power in wood
Heat-treated for superior strength and resistance to breakage
Large-scale manufacturing for bulk orders
Small Box Packaging for Retail:
Wood screws are available in small, easily manageable boxes, with quantities ranging from 50 to 200 screws per pack, ideal for resale.
Torx Head Wood Screw applications include a wide range of woodworking and construction projects. These screws are commonly used in furniture making, cabinetry, and general carpentry due to their superior grip and resistance to cam-out, which is the tendency of the screwdriver to slip out of the screw head. They are ideal for joining wood pieces together, attaching hardware, and securing components in both indoor and outdoor settings. Additionally, Torx head wood screws are favored in applications requiring frequent assembly and disassembly, as they provide consistent and reliable torque transfer, reducing the risk of damage to the screw head or the driving tool. Their design also allows for higher torque application, making them suitable for use with power tools and in situations where additional tightening force is needed.
Materials and Processing
Steel, stainless steel, and zinc or phosphate coatings that improve corrosion resistance are common materials.
Common surface treatments
Dacromet, phosphating, blackening, soap phosphating, and galvanizing.
Custom Torx head sizes and thread specifications
Length, coating, and packaging options
Private label services for distributors
High-volume production capabilities
| Item | Specification |
|---|---|
| Product Type | Torx Head Wood Screw (Star Drive Wood Screw) |
| Drive Type | Torx (T10 / T15 / T20 / T25 / T30) |
| Head Types | Flat Head (Countersunk), Pan Head, Round Head, Washer Head, Bugle Head (optional) |
| Thread Type | Coarse Thread (standard), Partial Thread / Full Thread (optional) |
| Point Type | Sharp Point, Type 17 Cutting Point (optional), Self-drilling Tip (optional) |
| Material | Carbon Steel (C1022 / C10B21), Stainless Steel (SS201 / SS304 / SS316), Alloy Steel (optional) |
| Surface Finish | Zinc Plated (Blue / Yellow), Black Phosphate, Ruspert Coating, Ceramic Coating, Plain / Passivated |
| Diameter | #6 / #7 / #8 / #9 / #10 / #12 (3.5 mm – 6.5 mm) |
| Length Range | 12 mm – 150 mm (1/2" – 6") |
| Heat Treatment | Case Hardened |
| Mechanical Performance | High Torque Resistance, Reduced Cam-out, High Pull-out Strength |
| Standards | DIN, ANSI, ISO, or OEM Custom Specifications |
| Packaging – Bulk | 5 kg / 10 kg / 20 kg Cartons |
| Packaging – Small Box | 50 / 100 / 200 / 500 pcs |
| Packaging – Retail | Blister Pack, Color Box (OEM Branding Available) |
| Typical Applications | Timber Construction, Furniture, Cabinetry, Decking, Fencing, Wood-to-Wood & Wood-to-Metal Fastening |
Note: We offer tailored screw solutions to your specific needs, with various options of materials, screw coatings, head/thread/point/shank types, and sizes.
