Precision-punched holes with uniform patterns
Strong yet lightweight structure
Excellent acoustic and ventilation performance
Highly customizable designs
Interior and exterior wall panels
Acoustic ceilings and partitions
Façades and sun control screens
Furniture and decorative elements
Surface Treatment
Powder coating
Anodizing
PVD coating
Brushed or polished finish
OEM Options
Hole size, shape, and pattern
Material and thickness options
Custom colors and coatings
Laser-cut branding or designs
Round (R) – most widely used, cost-effective
Square (S) – modern geometric appearance

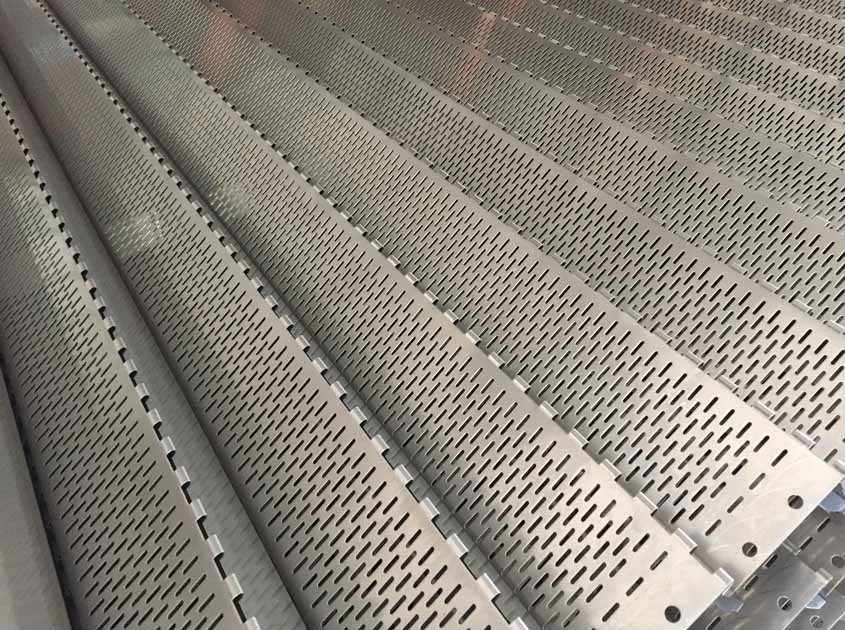

Rectangular / Slotted – ventilation and linear design

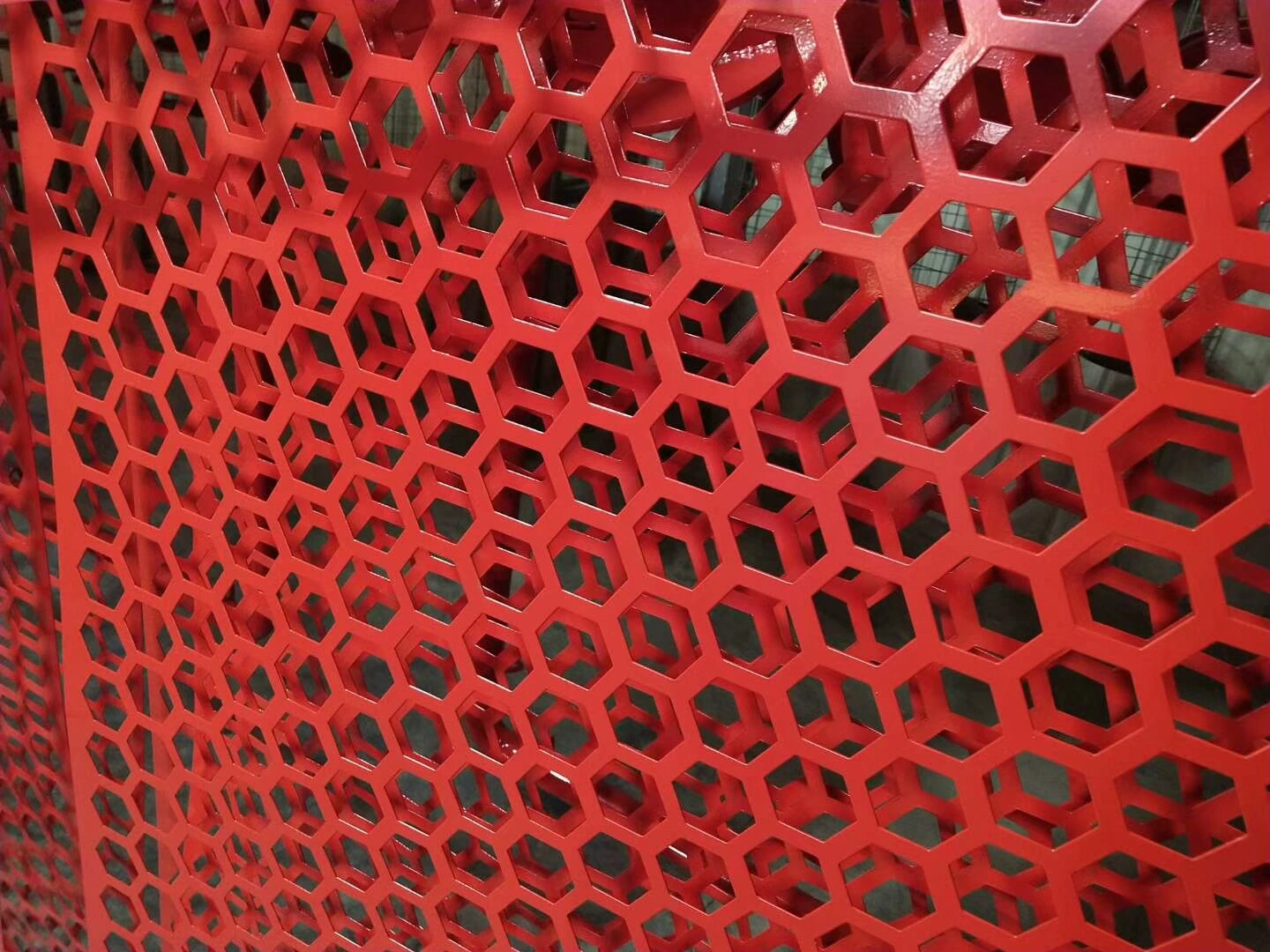

Hexagonal – high open area, honeycomb look
Diamond – decorative and anti-slip

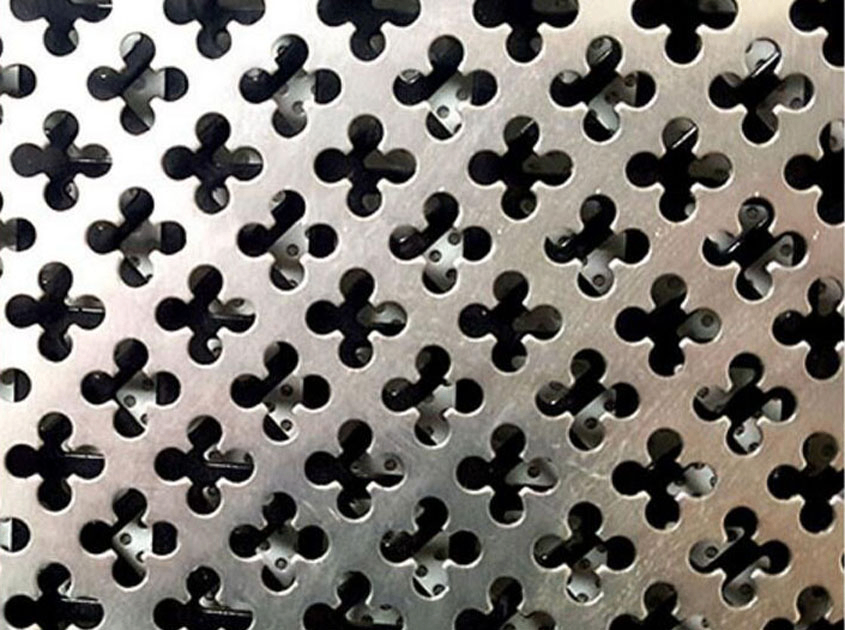

Custom / Laser Cut – logos, patterns, architectural designs
| Hole Shape | Common Hole Size Range |
|---|---|
| Round | Ø1 – Ø20 mm |
| Square | 2 × 2 – 20 × 20 mm |
| Slot | 2 × 10 – 10 × 50 mm |
| Hexagonal | 4 – 20 mm (across flats) |
| Diamond | 5 × 10 – 20 × 40 mm |
Popular decorative sizes: Ø3 mm, Ø4 mm, Ø5 mm, Ø6 mm, Ø8 mm, Ø10 mm
Straight Line (60° or 90°)
Staggered (60° – most common)
Diagonal
Square Pitch
Custom / Random / Graphic Pattern
| Hole Diameter | Pitch (Center to Center) |
|---|---|
| Ø3 mm | 5 – 6 mm |
| Ø4 mm | 6 – 8 mm |
| Ø5 mm | 8 – 10 mm |
| Ø6 mm | 10 – 12 mm |
| Ø8 mm | 12 – 16 mm |
| Ø10 mm | 15 – 20 mm |
| Material | Common Thickness Range |
|---|---|
| Aluminum | 0.8 – 4.0 mm |
| Stainless Steel | 0.6 – 3.0 mm |
| Carbon Steel | 0.9 – 5.0 mm |
| Galvanized Steel | 0.8 – 3.0 mm |
| Brass / Copper | 0.8 – 2.0 mm |
Most common decorative thickness: 1.0 mm, 1.2 mm, 1.6 mm, 2.0 mm
| Hole Size / Pitch | Open Area (%) |
|---|---|
| Ø3 mm / 5 mm | ~32% |
| Ø4 mm / 6 mm | ~40% |
| Ø5 mm / 8 mm | ~35% |
| Ø6 mm / 10 mm | ~33% |
| Ø8 mm / 12 mm | ~40% |
| Ø10 mm / 15 mm | ~42% |
(Open area varies by pattern and thickness.)
1000 × 2000 mm
1220 × 2440 mm (4′ × 8′)
1250 × 2500 mm
1500 × 3000 mm
Cut-to-size panels
Large-format façade panels
Perimeter framing and bending available
Raw edge
Deburred / smooth edge
Framed panels
Bending / folding
Rolling
Welding or mounting holes
Hole diameter: ±0.1 mm
Pitch: ±0.2 mm
Thickness: per material standard
Sheet size: ±2.0 mm
| Application | Recommended Spec |
|---|---|
| Interior wall panels | Ø4–6 mm holes, 1.2–2.0 mm thickness |
| Facades / sun screens | Ø6–10 mm holes, 2.0–3.0 mm thickness |
| Acoustic panels | Ø3–5 mm holes, staggered pattern |
| Balustrades | Ø6–8 mm holes, ≥2.0 mm thickness |
| Ceiling panels | Ø4–6 mm holes, lightweight aluminum |
Custom patterns available via CNC or laser perforation
Surface treatment applied after perforation (powder coating, anodizing, PVD)
Fire-rated materials available upon request
Samples and drawings (CAD / DXF) supported
