Concertina Razor Wire

Concertina Razor Wire Quick Details
• Usage: Razor barbed wire is widely used in apartment house,organization units,frontier fence,military fields and other sites requiring severe fencing and security.
• Material: Stainless Steel Wire,low carbon steel wire, iron wire
• Razor type: Razor type
• General wire: 2.5, 2.0 mm, etc
• Coil diameter: 450mm-980mm
• Color: Blue, green, red or others as customer's demands
• Type: Barbed Wire Strand
• Packing: Barbed wire is packed in coils by bulk, by carton or pallet according to customers request.
Inquiry
Share:
Detailed Information For Concertina Razor Wire
  • Features
  • Applications
  • Technology
  • Specifications
  • Inquiry

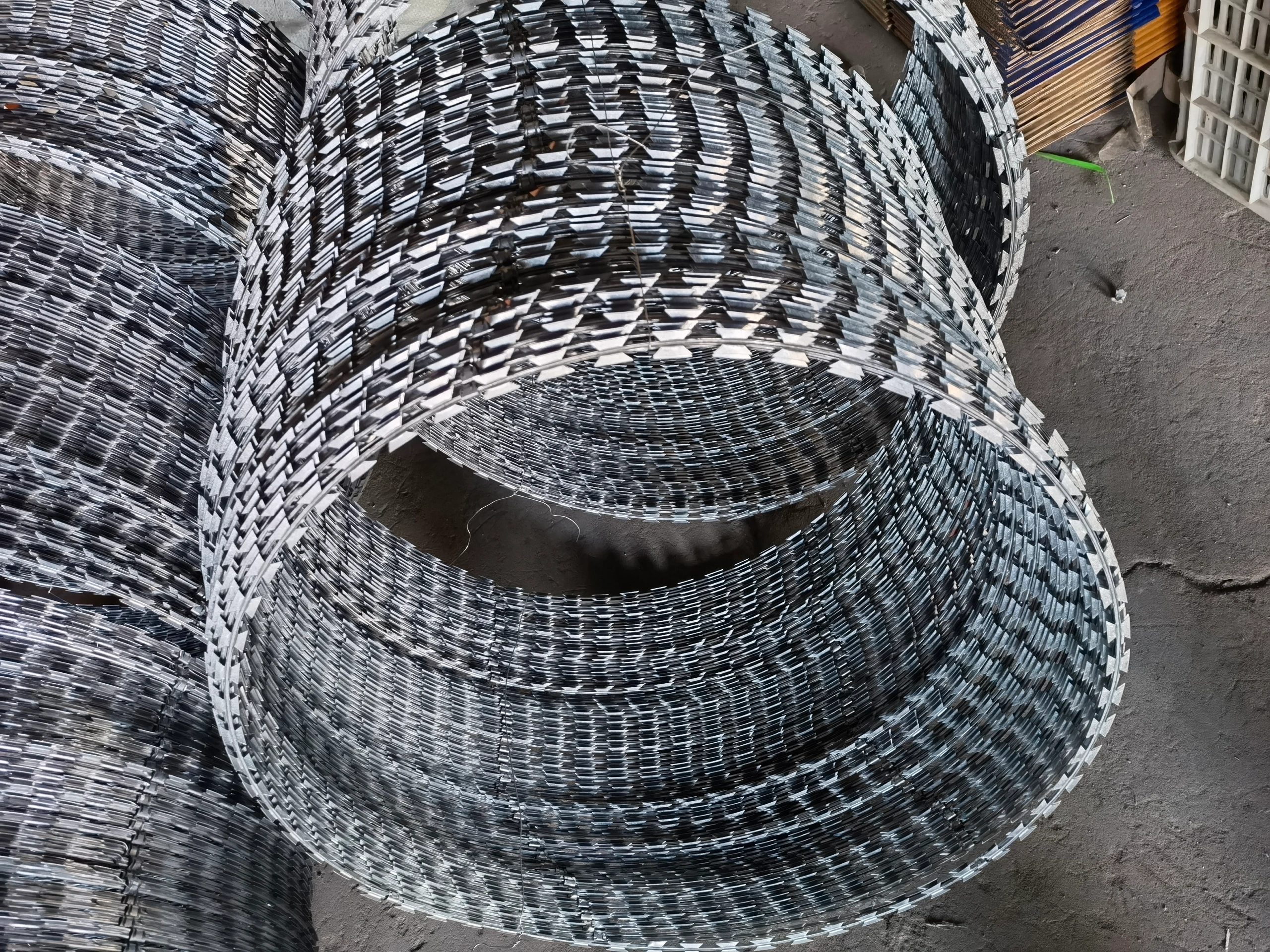

Concertina Razor Wire is a highly effective perimeter security solution designed to deter intrusion and unauthorized access. Manufactured from high-tensile steel wire with sharp razor blades, it is formed into expandable coils (concertina style) that create a formidable physical and psychological barrier.

As an OEM/ODM concertina razor wire supplier, products can be customized in blade type, coil diameter, surface treatment, and packaging to meet military, government, and industrial security standards.


Key Features of Concertina Razor Wire

  • Strong Deterrent Effect
    Sharp razor blades provide both physical and visual deterrence.

  • Anti-Climb & Anti-Cut
    Closely spaced blades and high-tensile core wire prevent cutting and climbing.

  • High Tensile Strength
    Spring steel core wire maintains shape after deployment.

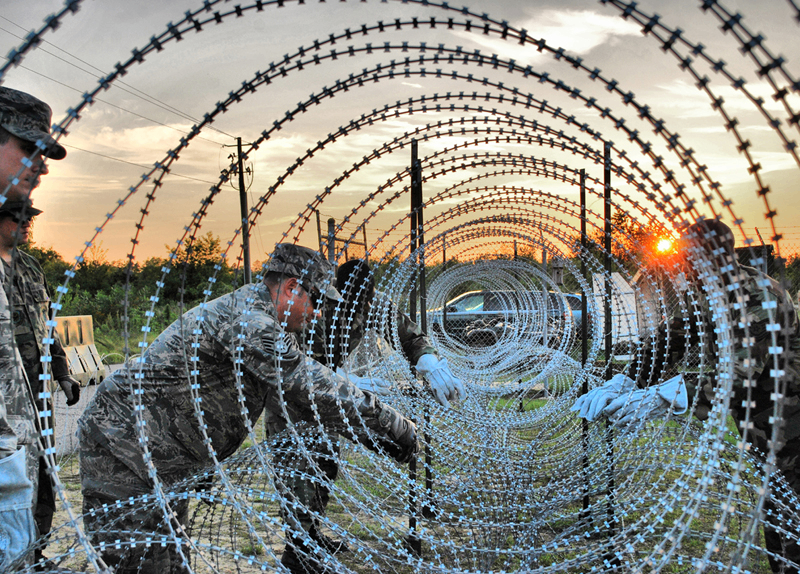

  • Quick Installation & Expansion
    Supplied in compact coils, easily expanded on-site.

  • Weather & Corrosion Resistant
    Suitable for long-term outdoor exposure.

  • OEM / ODM Customization
    Blade profiles, coil sizes, coatings, and packaging can be tailored.

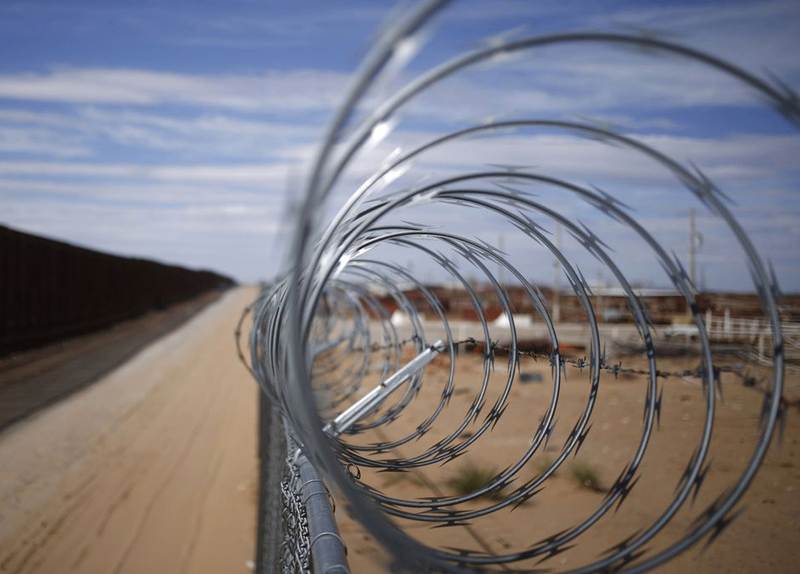

Concertina razor wire is widely used in high-security and restricted areas, including:

  • Military bases and defense facilities

  • Prisons and correctional institutions

  • Border security and checkpoints

  • Airports and seaports

  • Power plants and substations

  • Industrial facilities and warehouses

  • Government buildings and embassies

  • Temporary security during construction or emergencies

Surface Treatment Options

  • Hot-Dip Galvanized
    Excellent corrosion resistance, ideal for outdoor and coastal environments.

  • Electro Galvanized
    Smooth surface, economical option for short- to mid-term use.

  • PVC Coated
    Additional protection and camouflage; green or custom colors available.

  • Stainless Steel (Optional)
    Maximum corrosion resistance for extreme environments.


OEM / ODM Supply Capabilities

  • Custom blade types & coil sizes

  • Military-grade tensile strength options

  • Private label & bulk export packaging

  • Compliance with ASTM, EN, ISO standards

  • Project-based production & tender support

Reference NumberBlade StyleThicknessWire DiaBlade
Length
Blade
Width
Blade Spacing
BTO-12
0.5±0.052.5±0.112±115±126±1
BTO-15
0.5±0.052.5±0.115±115±133±1
BTO-22
0.5±0.052.5±0.122±115±134±1
BTO-30
0.5±0.052.5±0.130±118±145±1
CBT-25
0.5±0.052.5±0.125±116±140±1
CBT-60
0.5±0.052.5±0.160±232±1100±2
CBT-65
0.5±0.052.5±0.165±221±1100±2
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Concertina Razor Wire (Standard Use)
Outside DiameterNo. of LoopsStandard Length per CoilTypeNotes
450mm337-8MCBT-60.65Single coil
500mm5612-13MCBT-60.65Single coil
700mm5613-14MCBT-60.65Single coil
960mm5614-15MCBT-60.65Single coil
450mm568-9M (3 CLIPS)BTO-10.12.18.22.28.30Cross type
500mm569-10M (3 CLIPS)BTO-10.12.18.22.28.30Cross type
600mm5610-11M (3 CLIPS)BTO-10.12.18.22.28.30Cross type
600mm568-10M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
700mm5610-12M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
800mm5611-13M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
900mm5612-14M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
960mm5613-15M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
980mm5614-16M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
Note: Special size and specification can be customized.
